Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF F7008H / RNCF F7008HS
METAL DETECTOR Entrance Control & Automation system and Door entry systems

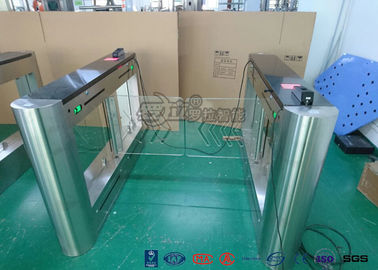

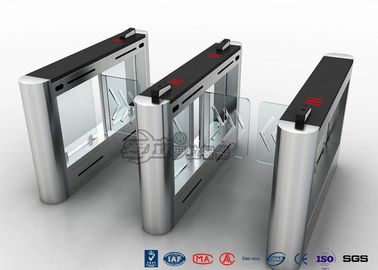

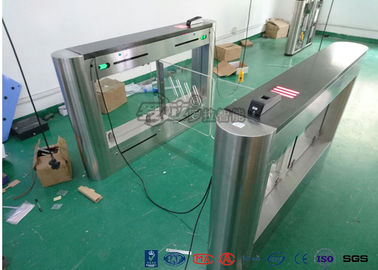

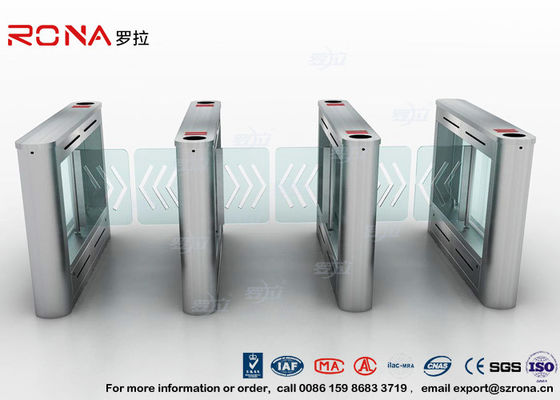

Swing barrier gates Standard features & functions
1) With function of self-examine and alarm, it is convenient for maintenance and use.
2) Being able to program running status by the small keyboard in the main board
3) Preventing pedestrians from being nipped and from hurt
4) Light and sound alarm funtion including the illegal in and the tail
5) Arms are automatically locked untill opening signal is received.
6) Arms synchronization (adjustable)
7) Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the 8) channel in the pre-set time after the opening. The passing time is adjustable
9) Automatically open the gate when power off and automatically close when power on
10) Several card readers are attachable, and relay singals can be received.
11) One direction or bi-direction are optional
12) It can be directly controlled and managed by remote control.
13) Count functions
14) Length of framework and material of arm are optional.
Product Application
The station, wharf, tourist attraction, entrance and exit management channel of factory
Recount channel management of exhibition, swimming pool, etc
Time attendance, access control, consumption management for enterprise or business unit
Special channel management system
| Standard Technical Parameters | |
| housing material | SUS304 stainless steel |
| Dimension | L1400*W280*H1000 (mm) |
| Net weight | 75Kg/unit |
| Working mode | single or bi-direction |
| Power supply | AC220/110 ±10% V 50 ±10% Hz |
| Motor Voltage | DC 24V |
| Input interface | Dry contact signal/12V level signal/12V pulse signal |
| Communication interface | RS485 (Distance less than 1200M) |
| Transit speed | 40 persons/min (normal open), 25-30 persons/min (normal close) |
| Opening/closing time | 2-3 sec |
| Transit time after power on | 3 sec |
| Auto reset time | 10 sec |
| Working environment | inside/outside (with shed) |
| Temperature | -10Ces-50Cels |
| Relative humidity | ≤90%, no condensation |
