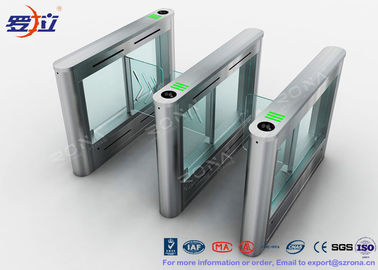

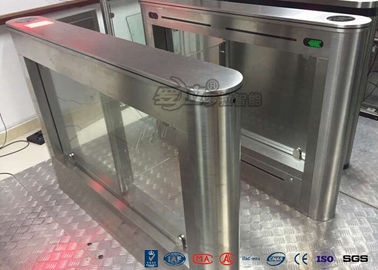

RFID Card Reader Pedestrian Barrier Gate Access Control System DC24V Brush Motor

RFID Card Reader Pedestrian Barrier Gate Access Control System DC24V Brush Motor

pedestrian swing gate

pedestrian security gates

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
304 Stainless Steel
Standard Size:
1410mm (L) *170mm (W) *993mm (H)
Driving Motor:
DC24V Brush Motor
Swing Length:
Material Swing:
Stainless Steel Or Acrylic
Pass Speed:
30 Persons/min
Indoor Or Outdoor
Working Life:
5 Millions
Input Interface:
+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
12 Months
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, L/C, T/T
Supply Ability
2000 units Per Month
Product Description

Swing Gate Swing Barrier Gate With Access Control System RFID card reader


Introduce of swing barrier gates

Swing barrier is an ideal passenger access management device produced by our company after years research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor and various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices. Direction indicator and well-extended LED counting display.


Bridge swing turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.


Swing barrier gates Standard features & functions

1, Barriers made from stainless steel, acrylic glass, etc;

2,Mechanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay

3, Automatic counting indicating passenger's number.

4, Human base model indication function, real time displaying, improve the passing rate and convenient maintain

5, Anti pinch function, barriers auto open when power shut, insure user safety.

6, Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage

7, Super combination capacity, adjustable model on site

8, Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient users and operators

8, Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.

10, Turned up-coverage is water-proof and easy maintain.

11, Open direction adjustable even though power off


Basic information of swing barrier gates

Housing material

304 grade stainless steel(thickness 1.5mm)

Length of arm


Arm's rotation angle

180 degree

Swing direction

single or bi-direction

Driving electromotor

DC Brush electromotor 50W/24V

Normal useful life

5 million times

Working voltage



-10C - 50C

Working environment

Indoor ,outdoor(with a tent over)

Transit speed

40 persons/min(open often) 25-30 person/min(close often)

Open/close time


Starting time after power on


Automatic reset time after fault


Communication interface

RS485 standard distance less than 1200 meters

Input interface

Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current > 10mA

Relative humidity

<= 90% no condensation
