|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||, L/C, T/T|
|Supply Ability:||2000 units Per Month|
|Material:||304 Stainless Steel||Standard Size:||Φ168*Φ89*H1060mm|
|Driving Motor:||DC24V Brush Motor||Channel Width:||530-830mm|
|Working Life:||5millions||Color Of Swing:||Stainless Steel And Acrylic|
|Guarantee:||12 Months||Working Environment:||-10℃～70℃|
|Direction:||Single Or Bi-directional|

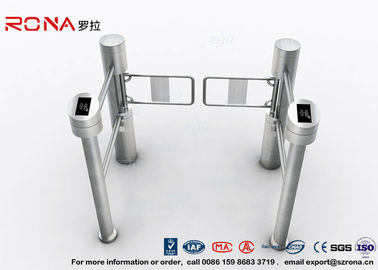

pedestrian swing gate,
pedestrian security gates,
stainless steel electric swing gates
Swing barrier gates Standard features & functions
1. Problem-self-checking function.
2. Many options of working ways: bi-direction cards reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm until passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interfaces for long-distance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.
9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.
When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatically or stop working for a while with very slight force. Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passengers have passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software.
15. Stable running with little noise.
Features of swing barrier gates
|Max power consumption||w||32|
|Dimension excluding bars||mm||Φ168*Φ89*H1060mm|
|Net weight including bars||kg||85|
