Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Lane |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Materials: | 304# Stainless Steel | Finish: | Brushed Surface/polishing Surface |
|---|---|---|---|
| Power Voltage: | AC220V±10%, 50Hz±10% | Operation Temperature:: | -10℃ ~ +70℃ |
| Communication Port: | RS232 / RS485 | Relative Humidity: | Less Than 95% Not Condensed |
| Working Environment: | Indoor/Outdoor (with Rain-tent Cover) | Input Port: | Relay Dry Contact Signal; +12V Level Signal, Pulse Width >100ms, DC12V Pulse Signal |
| High Light: | security turnstiles,barrier turnstile |
||

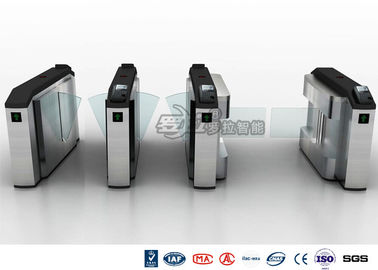

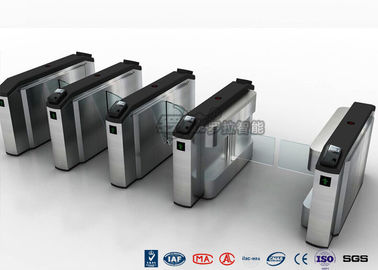

Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate
PRODUCT DESCRIPTIONS:
The turnstile system combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.
The turnstile system controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.
SPECIFICATIONS:
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
| Thickness of ply | 1.7mm |
| Finish | brushed surface, polishing surface |
| Shell's size (L*W*H) | Customized |
| Swing arm material | Tempered glass or Acrylic (optional) |
| Stretching out swing length | 260mm~600mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | DC brush motor |
| Main-board voltage | 12V DC |
| In-built Infrared | 6 pairs/passageway |
| Passing speed in normally open mode | 50 persons/min |
| Passing speed in normally closed mode | 40 persons/min |
| Passage Width | 600mm ~1200mm |
| Swing arm transmission angle | 180° |
| Swinging direction | unidirectional or bi-directional |
| Opening / closing time | 0.1 seconds |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 1 seconds |
| Mean time to failure | min. 5 000 000 |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 95% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
| Communications port | RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
OPTIONAL & CUSTOMIZED FUNCTIONS:
-> Alternative Materials, Finished and Custom Design
-> Usage LED Counter function
-> Audio and visual alarm in the event of an invalid entry or exit and tailgating
-> Remote Controlled Button
-> Extra add sensors transmitter and receiver type
-> Infrared sensors reset function
-> Access Control System Integration
-> Camera System Integratio
PROJECTS:
FACTORY:
EXHIBITION:
CONTACT US:
Shenzhen Rona Intelligent Technology Co., Ltd is a Chinese manufacturing firm located in Shenzhen. When you are ready to find out how we can service your needs, use the information listed here to reach our sales and service office. Monday to Friday: 8:30am - 6:00pm (UTC/GMT +8). We look forward to hearing from you.
Head office: A603, 6F, Yousong Technology Building, E Ring 1st Rd, Loghua Town, Bao'an, Shenzhen, China, 518109
Factory: 3F&4F, Building C, Longlian Industrial Zone, Zhonghua Rd, Longhuan Town, Bao'an, Shenzhen, China, 518109
Contact Person: Ms. Sophia Wey
Cel: +86-15986833719
Email: export@szrona.cn
Skype: rona.export
Tel: +86-755-88853586 ext 8039
Fax: +86-755-88853586 ext 8002
Contact Person: Joey Tu
Tel: 0086-88853586 ext 8018
