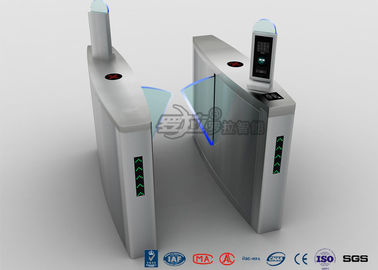

Fingerprint Flap Barrier Turnstile Half Height Security 304 Stainless Steel

Fingerprint Flap Barrier Turnstile Half Height Security 304 Stainless Steel

security turnstiles

barrier turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF1088 / RNCF1088S

Contact Us
Request A Quote
Product Details
Materials::
304# Stainless Steel
Size (L*W*H):
1500mm*300mm*990mm
Passage Width:
550mm
Mean Time To Failure:
5 000 000
Communications Port::
RS232 / RS485
Input Port::
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Fingerprint Flap Barrier Turnstile Half Height Security 304 Stainless Steel





PRODUCT DESCRIPTIONS:
The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.


The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.



PRODUCT CLASSIFICATIONS:

-> Single-core mechanism: RNCF1088

The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.



->Dual-core mechanism: RNCF1088S

The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.


SPECIFICATIONS:

Model

RNCF1088

RNCF1088S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1500mm*300mm*990mm

Material of flap

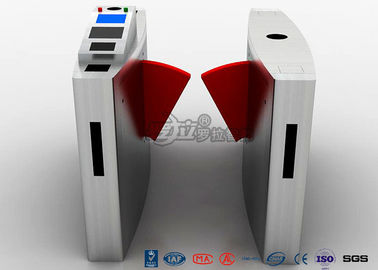

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length

230~235mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.



Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Brush motor

Main-board voltage

12V DC

In-built Infrared

5 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

Warranty

12 months



STANDARD FEATURES & FUNCTIONS:

  • (1). The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.

  • (2). Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

  • (3). Automatic check fault and alarm prompt function: to convenient for users to maintain and use.

  • (4). The running status of device can be set up through pressing the built-in small keyboard of the main control board.

  • (5). The device is locked until a valid open signal is received.

  • (6). Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.

  • (7). Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.

  • (8). Reset automatically function: “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s) by changing parameter of main control board). Also when power off, it will be opened the gates automatically. When the power is on again, the gates can also close automatically.

  • (9). Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

  • (10). LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

  • (11). Remote control and management function: Through the management computer to realize remote control and management.

  • (12). Streamline design that utilizes shared cabinets for multi-lane applications.

  • (13). The entire system runs smoothly, with a small noise and free of mechanical impact.

  • (14). With normally open & normally closed working mode.

  • (15). Approved CE certificate.
