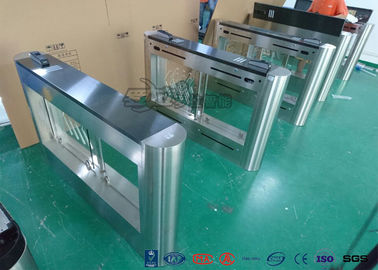

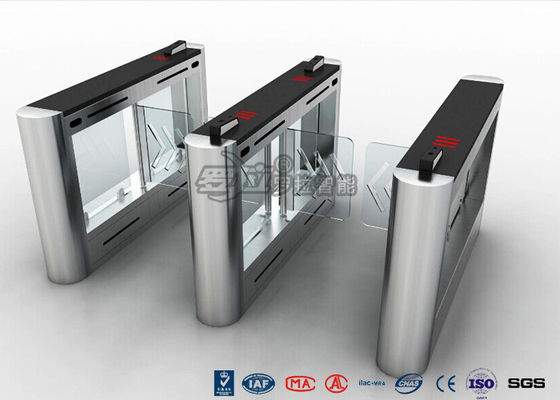

2016 newest Anti - Collision Walk Through Metal Swing Gate For Bus Station Card Reader System
Introduce of swing barrier gates
Swing barrier is an ideal passenger access management device produced by our company after years research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor and various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices. Direction indicator and well-extended LED counting display.
Bridge swing turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Swing barrier gates Standard features & functions
1, Barriers made from stainless steel, acrylic glass, etc;
2,Mechanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay
3, Automatic counting indicating passenger's number.
4, Human base model indication function, real time displaying, improve the passing rate and convenient maintain
5, Anti pinch function, barriers auto open when power shut, insure user safety.
6, Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
7, Super combination capacity, adjustable model on site
8, Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient users and operators
8, Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.
10, Turned up-coverage is water-proof and easy maintain.
11, Open direction adjustable even though power off
Basic information of swing barrier gates
|304 grade stainless steel(thickness 1.5mm)
|Length of arm
|Arm's rotation angle
|single or bi-direction
|DC Brush electromotor 50W/24V
|Normal useful life
|5 million times
|-10C - 50C
|Indoor ,outdoor(with a tent over)
|40 persons/min(open often) 25-30 person/min(close often)
|Starting time after power on
|Automatic reset time after fault
|RS485 standard distance less than 1200 meters
|Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current > 10mA
|<= 90% no condensation
