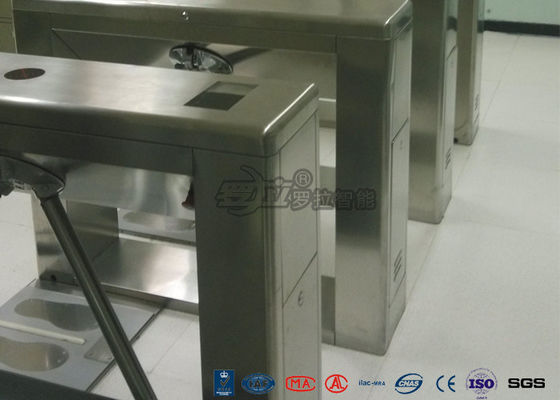

Standard Access Control Tripod Turnstile Gate Electronic With ESD System
PRODUCT DESCRIPTIONS:
The tripod turnstile controls pedestrian access between public and secure areas. The tripod turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
TECHNICAL SPECIFICATIONS:
Framework: | 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
Thickness of ply: | 1.3mm (default) |
Finish: | ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional) |
Dimension(L*W*H): | 1200mm*280mm*990mm |
Arm material: | Steel |
Arm length: | 500mm |
Arm diameter: | 38mm |
The maximum tolerance of the pole: | 80Kg |
Working driving force of the pole: | 3Kg |
Read facilities mounting: | may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
Power voltage: | AC220V±10%, 50Hz±10% |
Work movement: | Germany technology electromagnetic valve |
Semi-automatic type: | In-built hydraulic shock absorber |
Main-board voltage: | 12V DC |
Passage Width: | 550mm |
Passing speed in normally open mode: | 30~40 persons/min |
Passing speed in normally closed mode: | 25~30 persons/min |
Time of opening / closing: | 0.2 seconds |
The time required to running state after power on: | 5 seconds |
MTBF: | 550mm |
Operation Temperature: | -10℃ ~ 70℃ |
Relative humidity: | ≤95% not condensed |
Operation environment: | Indoor/Outdoor |
Input port: | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Communications port: | RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
Certification: | CE |
Warranty: | 12 months |
Net weight: | 58KGS |
STANDARD FEATURES & FUNCTIONS:
1. Turnstile can setting the working condition by press the button of main control board.
2. Turnstile can compatible with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
3. Tripod turnstile use secondly mechanism with shock absorption device and anti-reverse device(with patent).
4. Tripod turnstile with 60°anti-reverse function (Advantages)
5. Tripod turnstile with auto-lift-arm function(full automatic) and auto-drop-arm function(full automatic and semi-automatic).
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you don’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s ). When out of power turnstile will open automatically, after connect the electricity turnstile will close automatically.
7. Tripod turnstile with LED direction arrow plate .
8. Tripod turnstile with swiping card memory function.
9. Can manager and long-range control the turnstile directly by managing the computer.
