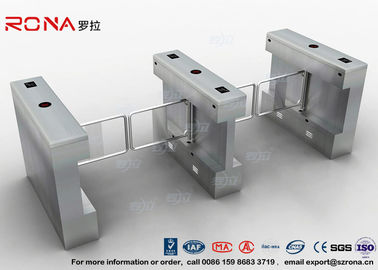

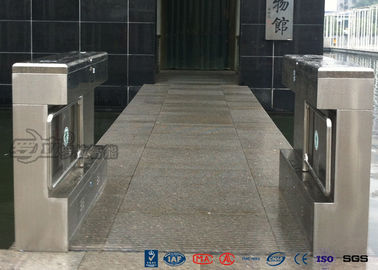

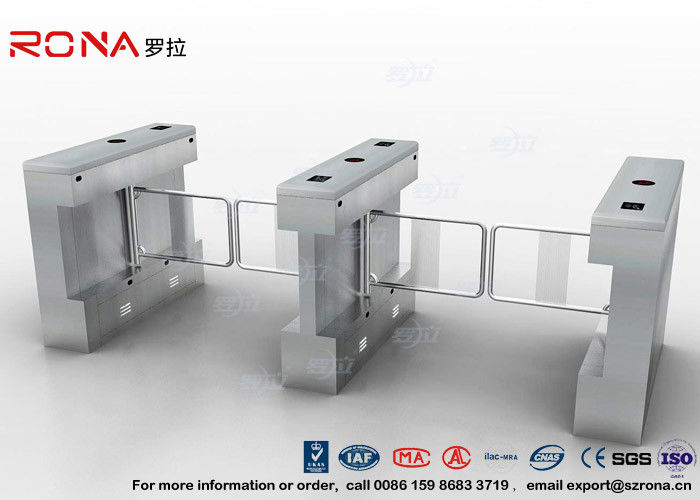

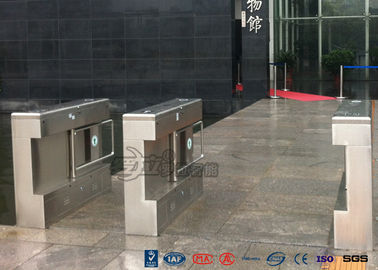

Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator

Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator

  • Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator
  • Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator
  • Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator
  • Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator
Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF6008L / RNCF6008LS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 7-15 working days
Payment Terms: , L/C, T/T
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Material: 304 Stainless Steel Standard Size: 1200*280*990mm
Pass Speed: 25-30 Persons/min IP: 54
Working Environment: -30℃~70℃ Working Life: 3 Millions
Input Interface: +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA Guarantee: 12 Months
High Light:

pedestrian swing gate

,

gate barrier system

Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator





Swing barrier gates Standard features & functions

1. Problem-self-checking function.
2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.




Parameter of swing barrier gates

Framework 304 Grade Stainless Steel
Specification
Weight 50kg
Arm length 600-900(mm)
Swing angle 0-180
Power voltage AC220 (10%more or less) V, 50(10%more or less) HZ
Drive voltage 24V
Interface standard port-RS485
LED indicating light one
Card-reading window two
Transit speed 30~40persons per minute

Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator 0

Gym Swing Barrier Gate Electronic Stainless Steel Turnstile Double Swing IP 54 LED Indicator 1
