Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF8008S

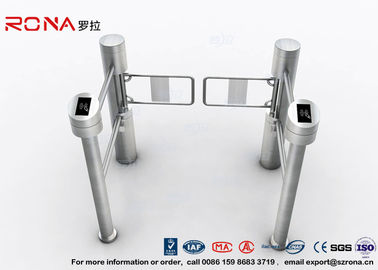

Introduce of swing gates
Swing barrier systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.
Basic information of swing barrier gates
| Model | RNCF8008S swing barriers gates |
| Size | Φ168*Φ89*H1060mm |
| Material | 2.1mm SU304 Stainless Steel |
| Swing Material | 12 mm PVC plexiglass |
| Waterproof | IP51 |
| Power supply | DC24V |
| Flap control | 360 degree slipping toothed cluth lock |
| Rotational angle | Max: 180 degree |
| Speed | 0.2--0.5s |
| Motor | Direct current bruch/brushless |
| Noise | Not more than 60dB |
| Lifetime | Not less than 5 million times |
| Interface | I/O. RS232/485. TCP/IP |
Swing barrier gates Standard features & functions
1. Single/double walkway--controlled in one direction or both.
2. A valid lock action can allow one passage at one time.
3. Normally open--the machine will unlock when a valid signal is received.
4. It will lock automatically if passage through turnstile is not completed within pre- set time, the set time can be adjusted via parameter change.
5. Lightning protection and leakage protection.
6. Protection functions:Anti-pinch, anticollision, antistall, over voltage and over current and powersurge.
7. Control panel with count and LED digital function
8. The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact.
9. Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance.
10. Standard external electric interface with photoelectric isolation enchance incorporate all kinds of control equipments thus extremely convenient for system integration.
11. Remote control and setup.
12. Extended functions:Counting, audible and visual alarm, fire alarm and linkage, Photoelectric Beam Detector.
