Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF8008M

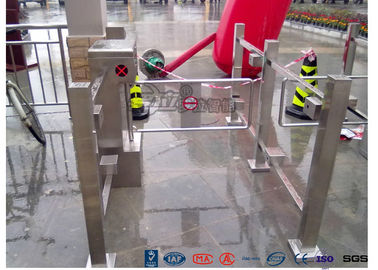

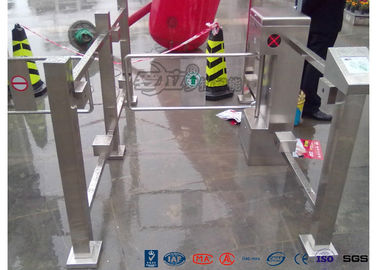

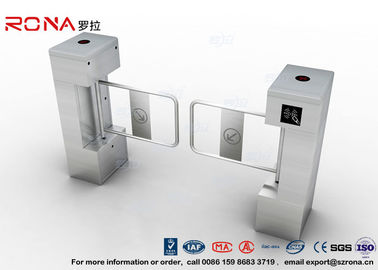

Swing barrier gates Standard features & functions
1) Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2) The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
3) It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4) In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5) Optical Turnstiles are suit for elegant and luxury entrance solutions.
|
Material
|
304 Stainless Steel
|
Normal Work Life
|
3,000,000 times
|
|
Diamet380*280*990mm
|
Access Direction
|
Single or bi directional
|
|
|
Arm Length
|
250 MM , can be customized
|
Communication Interface
|
TCP / IP or RS 485
|
|
Channel Width
|
NJ S527 Swing Barrier Normal lane : 600 MM Swing Turnstile Handicap Lane : 900MM
|
Input Interface
|
relay switch signal, 12 V level signal or 12 V pulse signal
|
|
Mechanism Type
|
Fully automatic Turnstile Mechanism
|
Operating Temperature
|
-15°C--75°C
|
|
Driving Device
|
DC 24V Motor
|
Warranty
|
1 year
|
|
Work Voltage
|
AC 220 (110 ) V±10% 50 HZ±10%
|
Fire Safty Emergency
|
Out of power , arm will automatically drop down
|
|
Transit Speed
|
40 people / minute
|
Work Environment
|
Indoor and outdoor
|
Features of swing barrier gates
1) The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2) Alarm function, in case of illegal intrusion and reverse intrusion.
3) Infrared sensor to prevent pinch pedestrians.
4) Anti-breakthrough function. The gate is locked automatically until opening signal received.
5) Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
6) LED indicator.
7) Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
8) When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
