Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF5099 / RNCF5099S
Product introduce

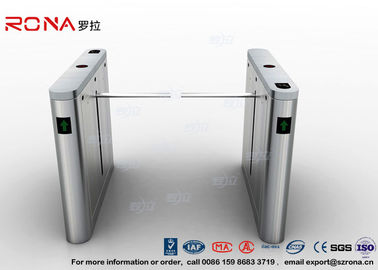

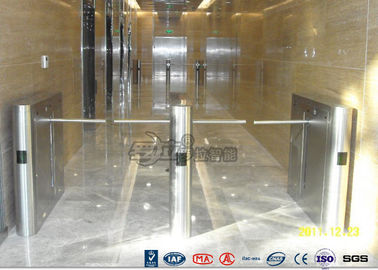

1) Arm drop turnstile is a high-tech product which mainly provides intelligent management to passageway, and is the upgrade product of intelligent tripod turnstile and swing barrier. Like swing barrier, this product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club those high-level places.
2) This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments..
3)Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);
Double motors (suitable for multiple passageways
Feature of the Arm drop turnstile:
1)NO mode & NC mode can be switched over by users easily & freely.
2)Self-recovery function: the machine will recovery automatically with invalid counting if passage
is not completed within pre-set time (5 seconds default, adjustable by software).
3)Self-examine Function: it is convenient for users to maintain and use.
4)Tailgating-detection function.
5)Intruding-alarm function.
6)Anti-pinch function: protection against finger entrapment and personal injury.
7)Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
8)With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of acces controllers.
9)Each machine can be set by Physical Address (Optional).
10)Equipped with free control software for man-machine interface & control command SDK.
Model Number |
RNCF5099 |
Dimension | 1200*165*990 mm |
Housing Material |
304# Stainless Steel |
Arm Length |
≤600 mm |
Passing Speed |
30-40 persons/min(RFIDCard) |
Direction |
Single way or double way |
Operating temperature |
minus 40°C---60°C |
Relative Humidity |
≤95%, No Condensation |
Power |
AC220C±10V,50HZ |
Motor |
30W/24V |
Working power |
DC24V 12AH |
Communication Connection |
TCP/IP |
Running Life |
5--8 Millions |
Opening/Closing time |
1 second |
Self checking time |
3s |
Certificates |
CE and ISO9001 |
Protection level |
IP54 |
