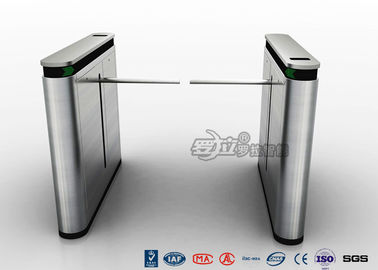

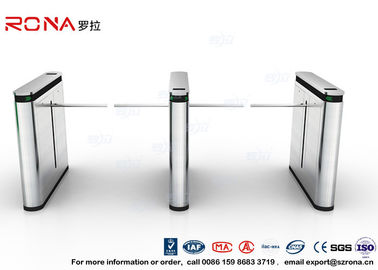

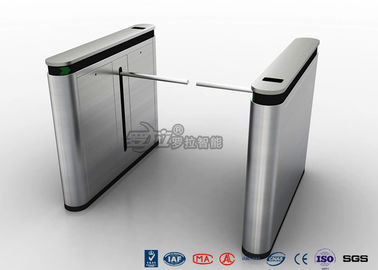

304 SS ID / IC Cards Emergency Security Drop Arm Turnstile Access Control
Product introduce
Drop arm function turnstile is mainly installed in entrance and exit of shopping mall which has a large flow rate; it is most popular in supermarket.
Drop arm function turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Functions of Drop Arm turnstile
1, Malfunction self-check and alarm reminder, ease of maitenance and use
2, Running method can be set through small buttons on the control panel
3, How arm reacts in emergency
4, How arm reacts when power on
5, Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
6, Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7, Unique positioning, self reset, one arm always in the horizontal level
8, LED lamp indicator
9, When open signal is given, arm rotate to a certain degree
10, How arm reacts when people passing
11, One direction or bi-direction flow control
12, Work directly with PC for remote control and management
13, LED counter Display
14, Bi-direction Anti reverse rotation
Parameter of Arm drop turnstile
| Power supply |
Single phase 220v,50Hz |
Humidity |
≤95% |
| Control Circuit |
DC Brush Motor |
Arm length |
550mm |
| Passing Method |
Bi- directional |
Reader windows |
2 |
| Speed |
25~30 people/min(Normal) |
Temperature |
-20°c~+50°c |
| Service Time |
More than three million times |
Weight |
96KG |
| Shock Resistance |
More tahn 80KG |
Protection |
IP51 |
| Shock Absorber |
Hydraulic Pressure |
Environment |
Inside,outside(awning) |
| Input Singal |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA
|
