Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF H5099-2 / RNCF H5099-2S

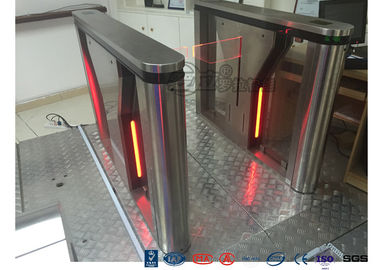

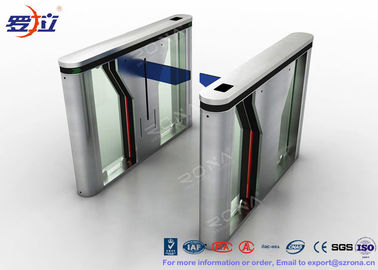

RONA Lane is an aesthetically pleasing, barrier free optical turnstile solution for high rise buildings, government centers, education campuses and corporate headquarters. The RONA Lane models are designed and built to withstand a rigorous access control environment while offering graceful passage.
Feature of the Arm drop turnstile:
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional)
14. Support infrared photocell for anti-pinch and reset function
Model Number | RNCF H5099-2 |
Dimension | L1200×W280×H990mm |
Housing Material | 304# Stainless Steel |
Arm Length | ≤600 mm |
Passing Speed | 30-40 persons/min(RFIDCard) |
Direction | Single way or double way |
Operating temperature | minus -10°C---70°C |
Relative Humidity | ≤95%, No Condensation |
Power | AC220C±10V,50HZ |
Motor | 30W/24V |
Working power | DC24V 12AH |
Communication Connection | TCP/IP |
Running Life | More than 3 Millions |
Opening/Closing time | 1 second |
Self checking time | 3s |
Certificates | CE and ISO9001 |
Protection level | IP51 |
