|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF-1088- nonstandard|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||, T/T, L/C|
|Supply Ability:||2000 units Per Month|
|Size:||1400mm (L) * 300mm (W) * 990mm (H)||Drive Motor:||DC24V Brush Motor|
|Working Environment:||Indoor/Outdoor||Direction Plate:||Arrow & Cross|
|Normal Running Life:||More Than 3 Millions||Waterproofing Grade:||IP54|
|System Waterproofing Grade:||Face Recognition System||Communication Interface:||RS485, TCP/IP|
turnstile access control system,
speed gate turnstile

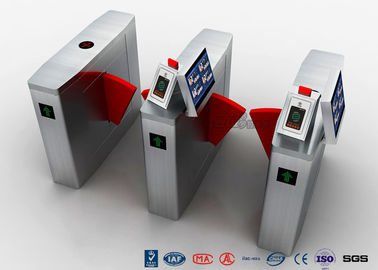

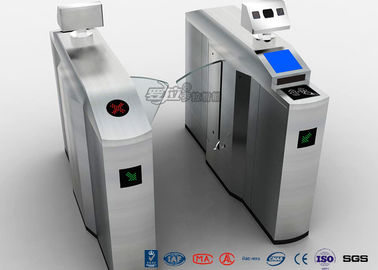

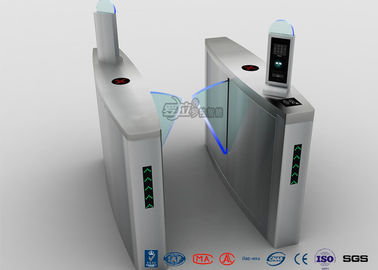

Face Recognition Automatic Access Control Turnstiles , Fast Lane Retractable Flap Barrier Gate
Flap barrier gates introduce
Intelligent flap gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Feature & Advantages
1. Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
2. Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3. Malfunction self-detection, which is easy for operation and maintenance.
4. Operational mode can be set up through the built-in menu on the control panel.
5. Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
6. Anti-collision function, the flaps will stay close if not receiving the open signal.
7. Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
8. Flaps reset to close position when power resume.
9. Flaps reset to lock position when access time expire.
10. Prevents Invalid/Tailgate/Wrong direction access.
11. LED Array indication for access granted/denied.
12. Compatible with diverse access control devices.
13. Pedestrian flow directions can be single or double directions.
14. RS485 socket is available to connect the computer.
Specification of Access Control Turnstiles
|Item No.||RNCF-1088- nonstandard|
|Housing Material||304 stainless steel|
|Dimensions||L1400 x W300 x H990mm|
|Maximum Passage Width||600mm|
|Flap Opening/Closing Time||0.2S|
|MCBF||5 million cycles|
|Transit Speed||35 persons/min|
|Operating Environment||Indoor/outdoor (Shelter)|
|Operating Temperature||-30°C ~ 60°C|
|Operating Humidity||≤95% no condensation|
