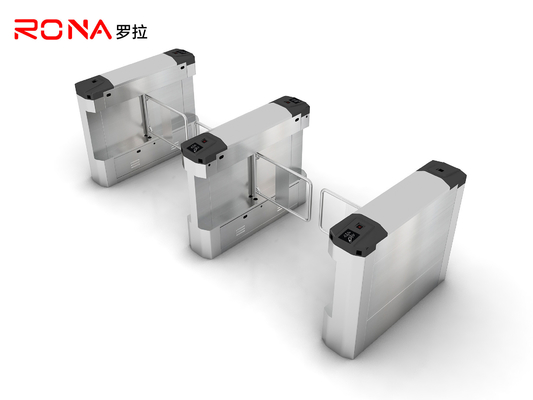

Bi-Directional Swing Barrier Turnstile Gate With Face Recognition

Bi-Directional Swing Barrier Turnstile Gate With Face Recognition

Bi-Directional Swing Barrier Turnstile

SS304 Swing Barrier Turnstile

Bi-Directional Facial Recognition Turnstile

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF 8008

Contact Us
Request A Quote
Product Details
Material Of Housing:
304 Stainless Steel
Opening Time:
Thickness Of Housing:
Dimension Of Housing (mm):
Swing Arm Angle:
Pass Speed:
30 Persons/min
Swing Barrier Turnstile Gate
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Export Wooden Packing
Delivery Time
7-15 work days
Payment Terms
T/T, L/C,
Supply Ability
2000 units Per Month
Product Description

Bi-Directional Swing Barrier Turnstile Gate With Face Recognition



Description Parameters
Item / Model RNCF 8008
Housing Material 304 Stainless steel
Swing arm Material 304 Stainless stee
Pass Speed 30 persons/min
Service Life ≧5000000
Opening time 0.5S/adjustable
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Swing arm length 230~900mm
Working Environment indoor/out(with tent over)-10°C~70°C



Product Description


1. Illegal Alarm Function Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
2. Anti-pinch function Barriers auto open when power shut, insure user safety
3. Housing Turned up-coverage is water-proof and easy maintain
4. Emergency-escape function The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not
5.Standard input/output port Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
6. Direction Big direction arrow plate to show passage condition



Standard functions & features of Swing Barrier Gate


1. Turnstile can setting the working condition by press the button of main control board.
2. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
3.Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
4. Can manager and long-range control the turnstile directly by managing the computer.
5. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff

6.With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.


Extended functions


1. Add more infrared
2. LED counting function
3. Voice prompt function
4. Nonstandard program customized
5. Program customization (for example : Normally open or closed can be adjust to meet the requirements of the different place. )
