Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF 9008H

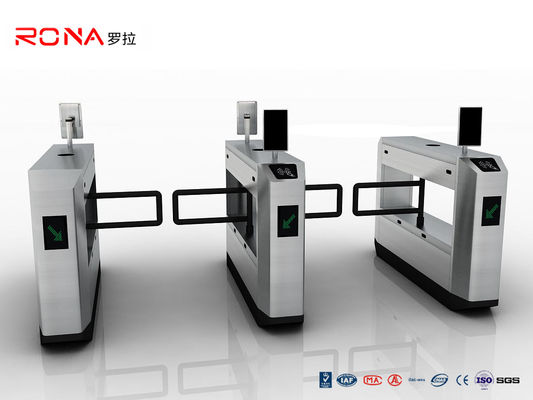

Anti-collision Swing Gate Face Recogntion Turnstiles Gate RFID 900mm Arm Length CE Approved
Description
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Operating Temperature | -20℃-60℃ |
| 3 | Relative Humidity | ≤95%, No Condensation free |
| 4 | Passage Width | 550mm( 1200mm optional) |
| 5 | Passing Speed | Normally open-40persons/min |
| 6 | Manufacturing Technique | CNC laser cutting |
| 7 | Motor | DC motor |
| 8 | Gate Opening and Closing time | ≤ 0.4S |
| 9 | Infrared Sensors | 3-6 Pairs |
| 10 | Working environment | indoor and outdoor(added the rain shed ) |
| 11 | Communication Distance | ≤1200M |
| 12 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 13 | Barrier Material | Acrylic glass, SUS304 and so on |
| 14 | Material | Stainless steel 304,thickness is no less than 1.5mm |
| 15 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 16 | Protect Level | IP54 |
| 17 | Size | 1200*280*990mm |
| 28 | Operation Place | SubwayStation, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise’s Entrance and ExitAttendance,Gateway Guard,Charge Management,Special AccessControl |
Product Description
| 1. Illegal Alarm Function | Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage |
| 2. Anti-pinch function | Barriers auto open when power shut, insure user safety |
| 3. Self-recovery function | The machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software). |
| 4. Emergency-escape function | The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not |
| 5.Interface | With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers. |
| 6. Direction | Both directions can be set as controlled mode or free mode. |
Standard functions & features of Swing Barrier Gate
1. Swing turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies.
2. Compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control.
3. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people,
4. Anti-illegal entry or exit. It can be widely used in the station, subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Extended functions
| 1. | Add more infrared |
| 2. | Big LED counting function |
| 3. | Voice & light prompt fuction |
| 4. | Nonstandard program customized |
| 5. | Program customization (for example : Normally open or closed can be adjust to meet the requirements of the different place. ) |
