Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF 5008/5008S

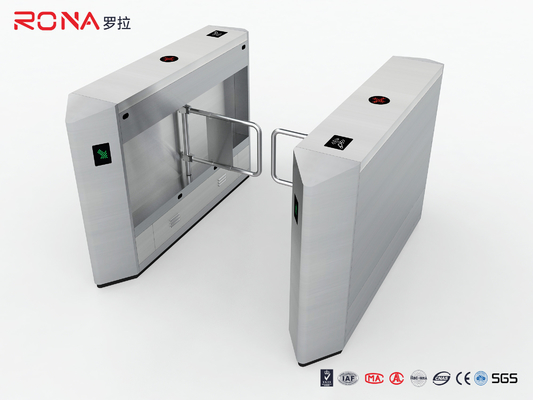

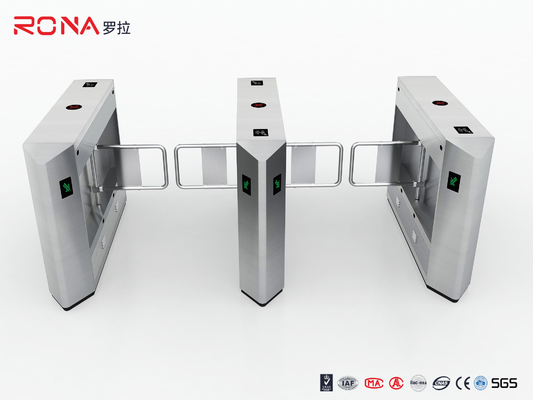

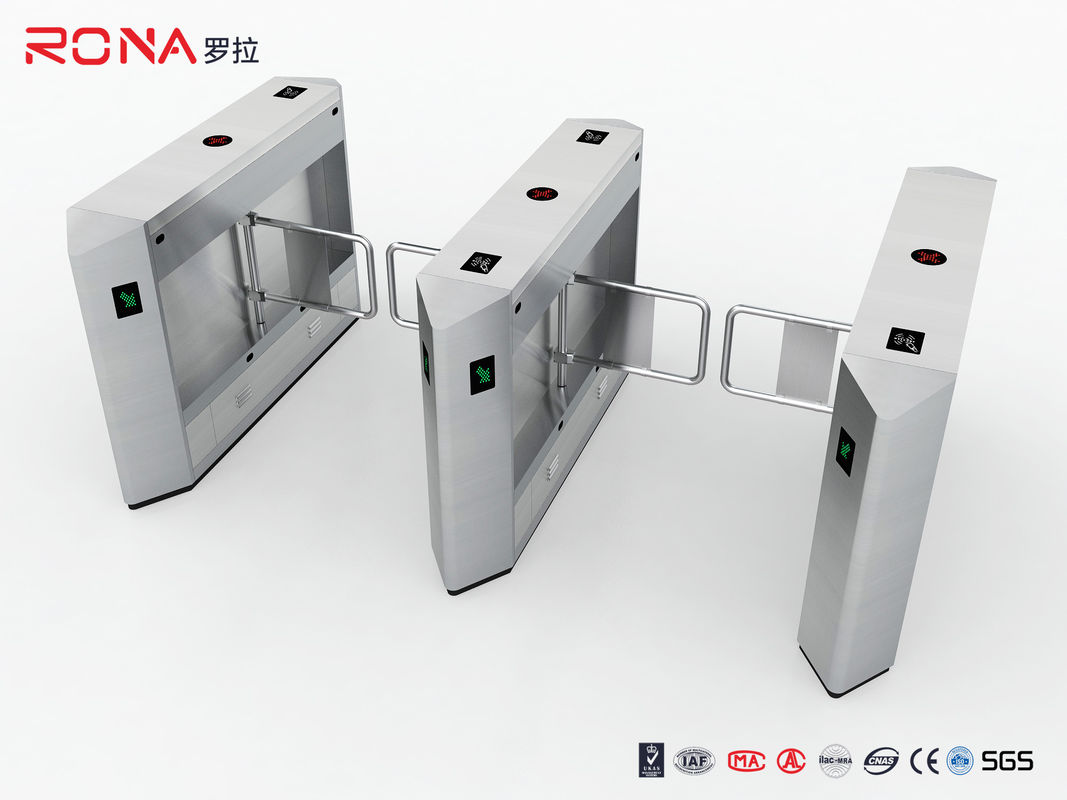

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Outdoor SUS304 Swing Barrier Gate Waterproof Turnstile With Acrylic Arm
Prduct Decribetion
1)With automatic homing, power-off unlock, power-on self-test, zero point correction, memory access, multiple opening, etc.
2)Material: Made of high-precision SUS304 stainless steel foot and thick plate material, corrosion resistance, wear resistance, high temperature resistance, oxidation resistance, durable, and after years of use, it is still as bright as new and always beautiful.
3)Structure: Modular design, easy disassembly, easy inspection, easy repair, easy installation and maintenance.
4)Alarm function: illegal break-in, reverse traffic, trailing, traffic timeout, and equipment alarm when the situation occurs;
5)Stable product performance, low energy consumption, low noise and long service life;
6)Super five-proof function: with anti-trailing, anti-reverse, anti-hand shake, anti-collision, anti-pinching; super protection, safer traffic;
Swing barrier gates Standard features & functions
| 1) With function of self-examine and alarm, it is convenient for maintenance and use. |
| 2) Being able to program running status by the small keyboard in the main board |
| 3) Preventing pedestrians from being nipped and from hurt |
| 4) Light and sound alarm funtion including the illegal in and the tail |
| 5) Arms are automatically locked untill opening signal is received. |
| 6) Arms synchronization (adjustable) |
| 7) Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the |
| 8)channel in the pre-set time after the opening. The passing time is adjustable |
| 9) Automatically open the gate when power off and automatically close when power on |
| 10) Several card readers are attachable, and relay singals can be received. |
| 11) One direction or bi-direction are optional |
| 12) It can be directly controlled and managed by remote control. |
| 13) Count functions |
| 14) Length of framework and material of arm are optional. |
Standard Technical Paramenters
| housing material | SUS304 stainless steel |
| Dimension | L1200*W280*H990 (mm) |
| Net weight | 75Kg/unit |
| Working mode | single or bi-direction |
| Power supply | AC220/110 ±10% V 50 ±10% Hz |
| Motor Voltage | DC 24V brushless motor |
| Input interface | Dry contact signal/12V level signal/12V pulse signal |
| Communication interface | RS232 (Distance less than 1200M) |
| Transit speed | 30-35 persons/min (normal open), 25-30 persons/min (normal close) |
| Opening/closing time | 2 sec |
| Transit time after power on | 3 sec |
| Auto reset time | 10 sec |
| Working environment | inside/outside (with shed) |
| Temperature | -10Ces-50Cels |
| Relative humidity | ≤90%, no condensation |
Package for turnstiles gate
