|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF H7008|
|Minimum Order Quantity:||1 Lane|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Products Name:||University Face Recognition Flap Barrier Turnstile Half Height Security System SUS Access Control Systems||Size (L*W*H):||L1400*W300*H990MM|
|Passage Width:||550mm||Mean Time To Failure:||5 Million|
|Communications Port::||RS232 / RS485||Input Port::||Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal|
DC Brushless Motor Flap Barrier Turnstile,
Flap Barrier Turnstile Half Height,
SUS Access Control Turnstile

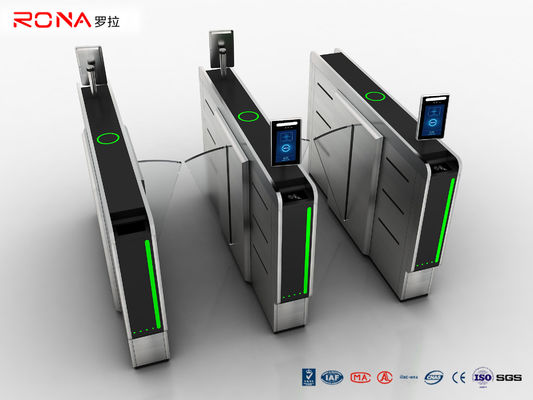

University Face Recognition Flap Barrier Turnstile Half Height Security System SUS Access Control Systems
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
-> Single-core mechanism: RNCF H7088
The flap barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications.
->Dual-core mechanism: RNCF H7088S
The flap barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.
|Model||RNCF H7088||RNCF H7088S|
|Classifications||Single-core mechanism||Dual-core mechanism|
|Framework||304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)|
|Thickness of ply||1.7mm|
|Finish||brushed surface, polishing surface or anti-fingerprint surface (optional);|
|Material of flap||different color Acrylic flap available or Red Soft flapper optional|
|Stretching-out flap length||230~235mm|
|The inductive card reader dimension||equipped with the standard mounting brackets or tailor.|
|Machine center||Germany technological motor|
|Power voltage||AC220V±10%, 50Hz±10%|
|Driver motor||DC Brushless motor|
|Main-board voltage||12V DC|
|In-built Infrared||6 pairs/lane|
|Passing speed||35 persons/min|
|Opening / closing time||0.6 seconds|
|The time required to running state after power on||3 seconds|
|Automatic reset time after the failure||10 seconds|
|Mean time to failure||5 million|
|Operation temperature||-10℃ ~ +70℃|
|Relative humidity||less than 95% not condensed|
|Working Environment||Indoor/Outdoor (with rain-tent cover)|
|Input port||relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal|
|Communications port||RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet|
STANDARD FEATURES & FUNCTIONS:
(1). The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
(2). Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
(3). Automatic check fault and alarm prompt function: to convenient for users to maintain and use.
(4). The running status of device can be set up through pressing the built-in small keyboard of the main control board.
(5). The device is locked until a valid open signal is received.
(6). Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.
(7). Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
(8). Reset automatically function: “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s) by changing parameter of main control board). Also when power off, it will be opened the gates automatically. When the power is on again, the gates can also close automatically.
(9). Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
(10). LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
(11). Remote control and management function: Through the management computer to realize remote control and management.
(12). Streamline design that utilizes shared cabinets for multi-lane applications.
(13). The entire system runs smoothly, with a small noise and free of mechanical impact.
(14). With normally open & normally closed working mode.
(15). Approved CE certificate.
