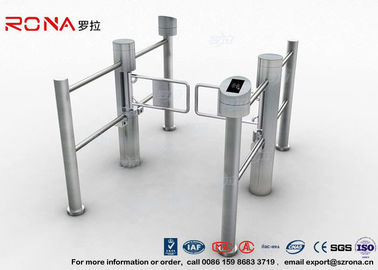

Double Core Biometric Pedestrian Security Gates Stainless Steel With Access Control

Double Core Biometric Pedestrian Security Gates Stainless Steel With Access Control

pedestrian swing gate

gate barrier system

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
304 Stainless Steel
Standard Size:
Driving Motor:
DC24V Brush Motor
Swing Length:
Material Swing:
Stainless Steel Or Acrylic
Pass Speed:
25-30 Persons/min
Working Environment:
Indoor Or Outdoor
Input Interface:
+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
12 Months
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, L/C, T/T
Supply Ability
2000 units Per Month
Product Description

Hot Sale Swing Barrier Gate Double Core Biometric Stainless Steel with Access Control



Description of swing gates:

Swing barrier systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.



Swing barrier gates Standard features & functions

1. Running stably without noise and mechanical impact.
2. The passing person number of the persons can be set

Bidirection or one direction permitted, one forbidden, or one direction charged,

one for free, and all the working molds set by the buttons in the main control board.

4. Direction-guide lights in the turnstile to tell you whether the direction to go or not.
5. Standard Interface. work with ID / IC. UHF. Fingerprint Readers
6. Beam can be lifted and fall when power is cut-off.
7. Self-check and alarm for convenient to operate.

Euipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.



Basic information of swing barrier gates

Model RNCF 8008S swing barriers gates
Size Φ168*Φ89*H1060mm
Material 2.1mm SU304 Stainless Steel
Swing Material 12 mm PVC plexiglass
Waterproof IP51
Power supply DC24V
Flap control 360 degree slipping toothed cluth lock
Rotational angle Max: 180 degree
Speed 0.2--0.5s
Motor Direct current bruch/brushless
Noise Not more than 60dB
Lifetime Not less than 5 million times
Interface I/O. RS232/485. TCP/IP




Extend Functions:
1. LED Counting function
2. Voice&light prompt Function
3. Voice& light alarm function
