Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF5066 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Export Wooden Packing |
Delivery Time: | 7-15 work days |
Payment Terms: | T/T, L/C, |
Supply Ability: | 2000 units Per Month |
Place Of Origin: | Guangdong, China (Mainland) | Size: | L600*W300*H1190MM |
---|---|---|---|
Type: | Sliding Turnstile | Housing: | 304 Grade Stainless Steel |
Swing Arm Material: | Acrylic / Tempered Glass | Transit Speed: | 30 Persons/min |
Color: | Silver/Customized | ||
High Light: | automatic systems turnstiles,waist high turnstile |

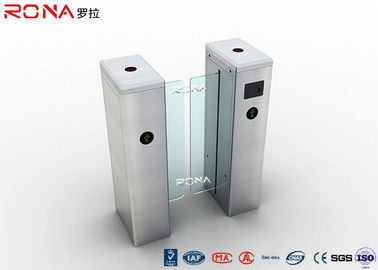

Space saving Automatic Security Sliding Type Gate Tempered Glass Turnstile
Description | Parameters |
Item / Model | RNCF5066 |
Power voltage | AC220±10%,50Hz |
Drive voltage | DC24V 20W |
Pass Speed | not more than 30 persons/minute |
Open direction | Unidirectional and bidirectional (optional) |
Opening time | 1S/adjustable |
Humidity | ≤90% coagulation free |
Thickness of Housing | 2.0mm |
Length of the bar | 230~900mm |
Working Environment | indoor/out(with tent over)-10°C~70°C |
Product Description
1. Illegal Alarm Function | Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage |
2. Anti-pinch function | Barriers auto open when power shut, insure user safety |
3. Housing | Turned up-coverage is water-proof and easy maintain |
4. Emergency-escape function | The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not |
5.Standard input/output port | Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC |
6. Direction | Big direction arrow plate to show passage condition |
Standard functions & features of Sliding Turnstiles Gate
1. Kinds Of Mode Alarm Function, Including Illegal Intrusion, Anti Intrusion, Trailing, Traffic Alarm, Etc.
2.Anti Impact Function, In The Absence Of The Received Gate Signal, Automatically Block Arm Lock Or Alarm
3. Normally Open, Normally Closed Mode Can Be Adjusted, Easily Through The Dial Code Or External Manual Button Control
4. Flexible Access Indication Function, High Brightness Indicator Light And The Human Nature Of The Prompt Function, Let The Channel More Features
5..Mechanical, Infrared Double Anti Pinch Function, In Arms Reduction Process Blocked In The Block, Automatic Stop Or Rebound, And Send Out Alarm Signals
6. Reverse Break Into The Alarm Function, When The Positive Credit Card, Someone To Break Into The First, Then The Gear Quickly Closed And Issued A Warning
Extended functions
1. | Add more infrared |
2. | LED counting function |
3. | Voice prompt function |
4. | Barrier color can choose |
5. | Secondly opening function to meet ticket system and anti-passback function |
