Shenzhen RONA Intelligent Technology Co., Ltd
RONA Intelligent Technology Co., Limited
 |
| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF7066 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Wooden Packing |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 2000 units Per Month |
| Name: | Security Gate Automatic Sliding Type Gate Tempered Glass Sliding Turnstile | Size: | L1400*W(250-300)*H1000MM |
|---|---|---|---|
| Type: | Glass Sliding Turnstile | Framework: | 304 Grade Stainless Steel |
| Swing Arm Material: | Acrylic / Tempered Glass | Transit Speed: | 30 Persons/min |
| Color: | Customized | ||
| High Light: | waist high turnstile,urnstile access control |
||

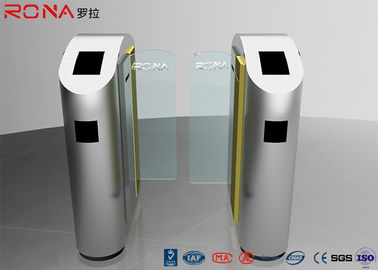

Security Gate Automatic Sliding Type Gate Tempered Glass Sliding Turnstile
| Description | Parameters |
| Item / Model | RNCF7066 |
| Power voltage | AC220±10%,50Hz |
| Drive voltage | DC24V 20W |
| Pass Speed | not more than 30 persons/minutes |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 0.6S/It is adjustable |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm |
| Length of the bar | 250mm |
| Working Environment | indoor/out(with tent over)-10°C~70°C |
Product Description
| 1. Illegal Alarm Function | Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage |
| 2. Anti-pinch function | Barriers auto open when power shut, insure user safety |
| 3. Housing | Turned up-coverage is water-proof and easy maintain |
| 4. Emergency-escape function | The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not |
| 5.Standard input/output port | Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC |
| 6. Direction | Big direction arrow plate to show passage condition |
Standard functions & features of Sliding Turnstiles Gate
1. Automatically reset : lock automatically while the pe1. Provide normally open / normally close to satisfy management request.
2. Compatible with RF card readers, bar code readers, biometric readers, push button...
3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
destrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
5. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
6. (Optional) Support gate open while power failure and recover N/C mode after power on.
7. One direction or bi-direction is optional.
8. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
Extended functions
| 1. | Add more infrared |
| 2. | LED counting function |
| 3. | Voice prompt function |
| 4. | Barrier color can choose |
| 5. | Secondly opening function to meet ticket system and anti-passback function |
Contact Person: Joey Tu
Tel: 0086-88853586 ext 8018
