Stainless Steel Half Height Turnstiles , Sliding Gate Turnstiles With Servo Motor

Stainless Steel Half Height Turnstiles , Sliding Gate Turnstiles With Servo Motor

automatic systems turnstiles

waist high turnstile

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF H1066 / RNCF H1066S

Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
1600L*230W*1020H Mm
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
Servo Motor
Operation Temperature:
-10℃ ~ +70℃
Relative Humidity:
≤90% Not Condensed
Working Environment:
Indoor/Outdoor (with Rain-tent Cover)
Input Port:
Relay Dry Contact Signal
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

304 Stainless Steel Turnstile Barrier Gate Sliding Gate Turnstiles With Servo Motor


SmartLane Sliding Gate Turnstile RNCF H1066


For people with reduced mobility or service personnel, SmartLane RNCF H1066 security turnstile proposes a wider passage with enhanced access control in one direction of passage and dissuasive in the other.


Main Benefits :

  • CE certified to ensure additional user safety

  • High-performance detection system to eliminate unauthorized use and false alarms

  • Streamlined and elegant oval design that integrates well into both prestigious lobbies yet robust enough for your harsh industrial environments

Applications :

The SmartLane RNCF H1066 models offer a complete solution, in that they are adapted to the mobility-impaired and are ideal for restricted sectors that are often subject to unauthorized use attempts or tailgating. The additional extension provides additional throughput control in the direction of passage. Typical customer segments include:


  • Banks and insurance companies

  • Government buildings and institutions

  • Office buildings, head offices, administrative sites

  • Schools, universities and colleges

  • Sensitive sites: military bases, nuclear plants, pharmaceutical companies, data centers

  • Industrial and manufacturing facilities

  • Airports, etc.

Wide choice of operating parameters adjustable through a user friendly interface to fit your specifi c functional requirements
Combination of standard and wide security entrance lanes allows you to confi gure the installation to your needs
Aesthetic customisation to meet your architectural style
Vast selection of options and accessories



High throughput: up to 30 users/minute
Third generation of security entrance lanes based on 15 years of experience and over 10 million daily users
Long life cycle, low cost of ownership
Proven reliability: more than 1 000 lanes operating in demanding applications



Product Name

Sliding Gate Turnstile


RNCF H1066



Single-core mechanism

Dual-core mechanism


304# Stainless Steel (default)

Thickness of ply



brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)


Material of flap


Stretching-out flap length


Height of Sliding Gate

max of 900mm

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

servo motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/lane

Passing speed

30 persons/min

Passage Width


Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 10 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal or DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m.


12 months

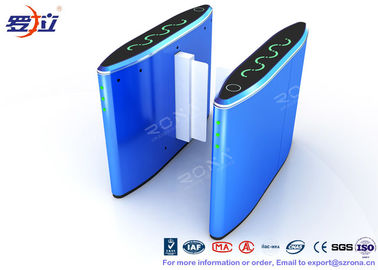

Stainless Steel Half Height Turnstiles , Sliding Gate Turnstiles With Servo Motor 0

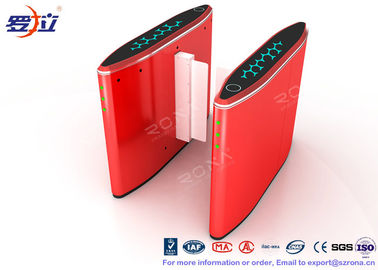

Stainless Steel Half Height Turnstiles , Sliding Gate Turnstiles With Servo Motor 1

Stainless Steel Half Height Turnstiles , Sliding Gate Turnstiles With Servo Motor 2
