Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF838

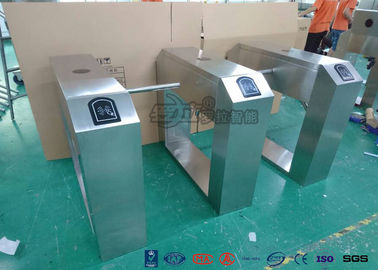

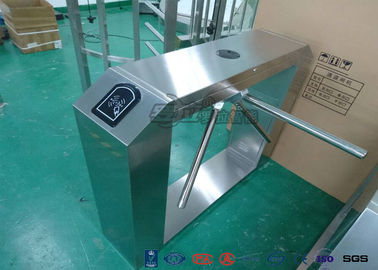

2016 newest special tripod gates with ID/IC reader access control time attendence system 304 Stainless Steel Turnstile
PRODUCT CLASSIFICATIONS:
Ful Automatic Type: when power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift automatically. Once an open signal is given, the arms will rotate automatically.
STANDARD FEATURES & FUNCTIONS:
|
TRIPOD TURNSTILE STANDARD FUNCTION SPECIFICATIONS |
RNCF838 |
|
The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc. |
√ |
|
Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller. |
√ |
|
Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board). |
√ |
|
Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board). |
√ |
|
Automatic-rotation function: once an open signal is given, the arms will rotate automatically. |
√ |
|
Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off. |
√ |
|
Auto-lift-arm function: when the power is on again, the arm can also lift automatically |
√ |
|
Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
√ |
|
Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home |
√ |
|
Optional indication of Mulit LED |
√ |
|
Optional indication of inside LED counter or outside LED counter |
√ |
|
With interface of switch of relay, compatible with all the access controller |
√ |
|
Equipped with free control software for man-machine interface & control command SDK. |
√ |
|
Through the management computer to realize remote control and management. |
√ |
1. EASY MAINTENANCE: Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.
2. SEMI AUTO ROTATION:Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.
3. ANTI TAIL-GATING:Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.
4. USER FRIENDLY:LED at top cover indicates approved entry direction after flash card. LED at each leg indicate if the lane is available or closed down for servicing. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
5. EASY INTEGRATION:Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and side leg can be opened to install external devices.
Key Features
1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost
2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
5. When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection. When power on, the arm can lift by hand.
6. Emergency configuration: The tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency

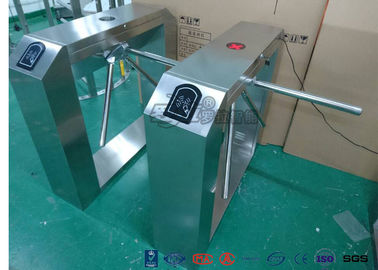

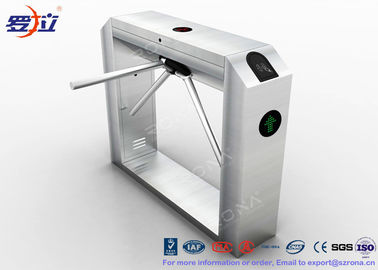

7. Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
8. It can be used for intelligent control and management of the passage after equipped with diffent access control system.
9. A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60 seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.
10 .Self-recovery function: The machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
The size showing
