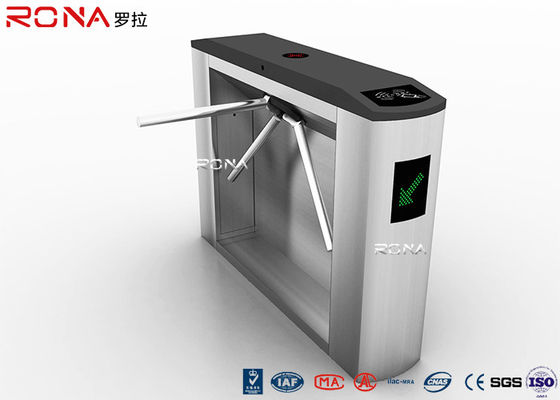

Electronic Tripod Turnstile Gate Security Access Control System Adjustable Opening Time

Electronic Tripod Turnstile Gate Security Access Control System Adjustable Opening Time

turnstile security gate

tripod access system

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
New Security Access Control System Electronic Tripod Turnstile Made In China
Thickness Of Material:
2.0mm 304 Stainless Steel
Communication Interface:
Single Or Bi-direction
Passage Width:
Arm Material:
304 Stainless Steel / Tempered Glass / Acrylic
Access Control:
Silver / Customized
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description


New Security Access Control System Electronic Tripod Turnstile made in China



Technical Parameters


Description Parameters
Item / Model RNCF F138
Normal Running Life >5 million
Working Voltage AC220±10% 50hz 50w

Max Bearing Stress Of Arm

Open Direction Unidirectional and bidirectional (optional)
Opening Time 0.2S(adjustable)
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Length of The Bar 500-550mm
Working Movement 24v solenoid valve (German technology) & 24v DC Brush Motor
LED Light  direction and arrow



Product Description


1. Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2. Made of 304 Grade Stainless Steel, with antirust feature, firm crust and easy maintenance.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.
6. The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
7. Normally open and turnstile will unlock when a valid signal is received
8. Turnstile will lock automatically if passage is not completed within the pre-set time
9.  Allows one passenger at a time



Standard Functions & Features of Tripod Turnstiles Gate


1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
3. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
4. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.
5. The emergency button which can ensure unblocked access is available.
6. Powerful on-line intelligent control mode, facilitating you
7. Equipped with LED directional indication / status lights.
8. With interface of switch of relay, compatible with all the access controller


Adaptive Place

1. Office: Business Building, Government Office, Etc.;
2. Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.;
3. Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.;
4. Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
5. Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.







Electronic Tripod Turnstile Gate Security Access Control System Adjustable Opening Time 0




Electronic Tripod Turnstile Gate Security Access Control System Adjustable Opening Time 1
