Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF F238

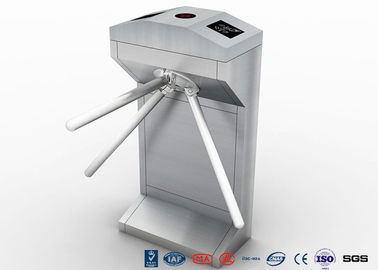

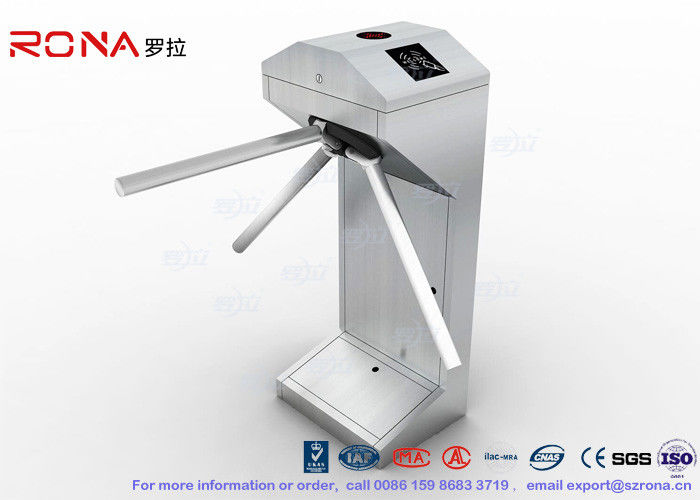

Access Control Tripod Turnstile Rotating Steel CE Certification
PRODUCT CLASSIFICATIONS:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.
FEATURES:
EASY MAINTENANCE: Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.
SEMI AUTO ROTATION:Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.
ANTI TAIL-GATING:Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.
USER FRIENDLY:LED at top cover indicates approved entry direction after flash card. LED at each leg indicate if the lane is available or closed down for servicing. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
EASY INTEGRATION:Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and side leg can be opened to install external devices.
TECHNICAL SPECIFICATIONS:
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
Thickness of ply: |
1.3mm (default) |
Finish: |
① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional) |
Dimension(L*W*H): |
420mm*330mm*990mm (default) |
Arm material: |
Steel |
Arm length: |
500mm |
Arm diameter: |
38mm |
The maximum tolerance of the pole: |
80Kg |
Working driving force of the pole: |
3Kg |
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
Power voltage: |
AC220V±10%, 50Hz±10% |
Work movement: |
Germany technology electromagnetic valve |
Semi-automatic type: |
In-built hydraulic shock absorber |
Main-board voltage: |
12V DC |
Passage Width: |
550mm |
Passing speed in normally open mode: |
30~40 persons/min |
Passing speed in normally closed mode: |
25~30 persons/min |
Time of opening / closing: |
0.2 seconds |
The time required to running state after power on: |
5 seconds |
MTBF: |
550mm |
Operation Temperature: |
-10℃ ~ 70℃ |
Relative humidity: |
≤95% not condensed |
Operation environment: |
Indoor/Outdoor |
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
Certification: |
CE |
Warranty: |
12 months |
Net weight: |
37KGS |
