| Brand Name: | RONA |
| Model Number: | RNCF938 (NEW) |
| MOQ: | 1 unit |
| Price: | negotiation |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |

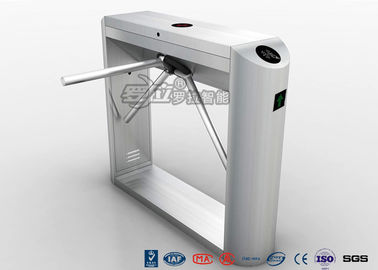

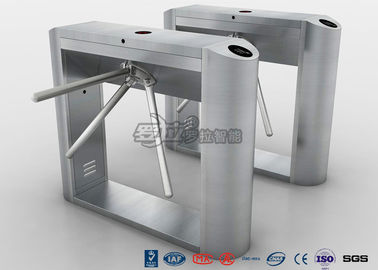

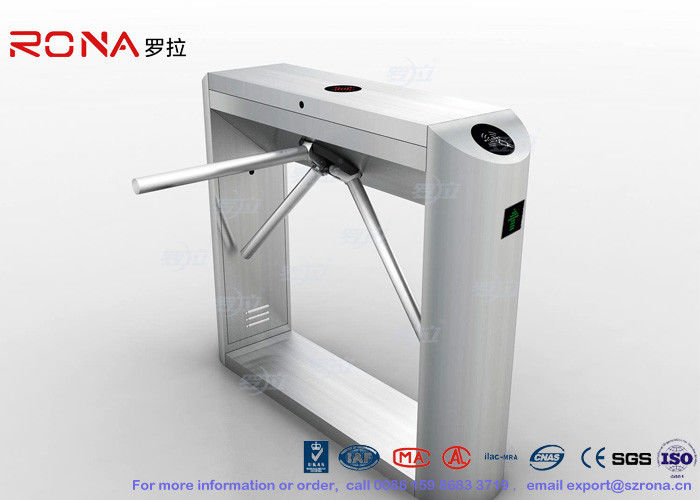

Automatic Tripod Turnstile Gate Stainless Steel Mechanism for Factory Entrance
FEATURES:
EASY MAINTENANCE: Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.
SEMI AUTO ROTATION:Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.
ANTI TAIL-GATING:Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.
USER FRIENDLY:LED at top cover indicates approved entry direction after flash card. LED at each leg indicate if the lane is available or closed down for servicing. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
EASY INTEGRATION:Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and side leg can be opened to install external devices.
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
TECHNICAL SPECIFICATIONS:
|
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
|
Thickness of ply: |
1.3mm (default) |
|
Finish: |
① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional) |
|
Dimension(L*W*H): |
1200mm*280mm*990mm (default) |
|
Arm material: |
Steel |
|
Arm length: |
500mm |
|
Arm diameter: |
38mm |
|
The maximum tolerance of the pole: |
80Kg |
|
Working driving force of the pole: |
3Kg |
|
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
|
Power voltage: |
AC220V±10%, 50Hz±10% |
|
Work movement: |
Germany technology electromagnetic valve |
|
Semi-automatic type: |
In-built hydraulic shock absorber |
|
Main-board voltage: |
12V DC |
|
Passage Width: |
550mm |
|
Passing speed in normally open mode: |
30~40 persons/min |
|
Passing speed in normally closed mode: |
25~30 persons/min |
|
Time of opening / closing: |
0.2 seconds |
|
The time required to running state after power on: |
5 seconds |
|
MTBF: |
550mm |
|
Operation Temperature: |
-10℃ ~ 70℃ |
|
Relative humidity: |
≤95% not condensed |
|
Operation environment: |
Indoor/Outdoor |
|
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
|
Certification: |
CE |
|
Warranty: |
12 months |
|
Net weight: |
37KGS |
PROGRAMMABLE OPERATION MODELS:
The turnstile provides bi-directional access control. Each direction may be in one of three states:
Free passage: all person are authorized to pass under all conditions
Controlled access: each person must use a card reader before being authorized to pass
Lane closed: no persons are authorized to pass, and security cards are ignored
DIMESNION SPECIFICATIONS:
