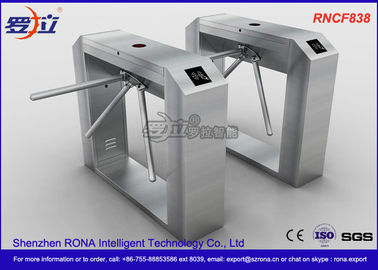

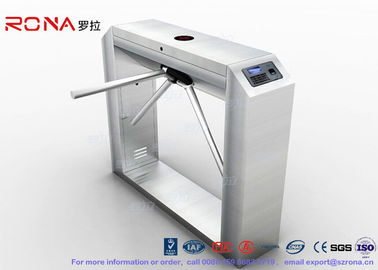

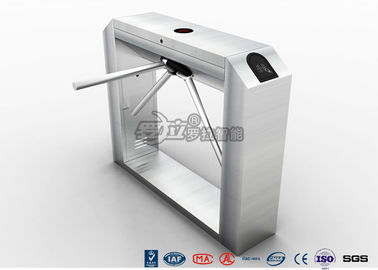

304 Stainless Steel Tripod Turnstile Gate RFID Flap Barrier Turnstile Attendance Fingerprint Reader

304 Stainless Steel Tripod Turnstile Gate RFID Flap Barrier Turnstile Attendance Fingerprint Reader

pedestrian turnstile gate

tripod access system

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF838 (NEW)

Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
Dimension:
1200L*280W*990H Mm
Machine Center:
Germany Technological Mechanism
Passing Speed:
30 Persons/min
Passage Width:
550mm
Mean Time To Failure:
Min. 5 000 000
Working Environment:
Indoor Or Outdoor
Communications Port:
RS232/ RS485
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

304 Stainless Steel Tripod Turnstile Gate RFID Flap Barrier Turnstile Attendance Fingerprint Reader





PRODUCT CLASSIFICATIONS:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.

STANDARD FEATURES:

1. EASY MAINTENANCE: Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.

2. SEMI AUTO ROTATION:Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.

3. ANTI TAIL-GATING:Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.

4. USER FRIENDLY:LED at top cover indicates approved entry direction after flash card. LED at each leg indicate if the lane is available or closed down for servicing. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.

5. EASY INTEGRATION:Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and side leg can be opened to install external devices.



TECHNICAL SPECIFICATIONS:

Framework:

304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)

Thickness of ply:

1.3mm (default)

Finish:

① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)

Dimension(L*W*H):

1200mm*280mm*990mm (default)

Arm material:

Steel

Arm length:

500mm

Arm diameter:

38mm

The maximum tolerance of the pole:

80Kg

Working driving force of the pole:

3Kg

Read facilities mounting:

may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.

Power voltage:

AC220V±10%, 50Hz±10%

Work movement:

Germany technology electromagnetic valve

Semi-automatic type:

In-built hydraulic shock absorber

Main-board voltage:

12V DC

Passage Width:

550mm

Passing speed in normally open mode:

30~40 persons/min

Passing speed in normally closed mode:

25~30 persons/min

Time of opening / closing:

0.2 seconds

The time required to running state after power on:

5 seconds

MTBF:

550mm

Operation Temperature:

-10℃ ~ 70℃

Relative humidity:

≤95% not condensed

Operation environment:

Indoor/Outdoor

Input port:

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port:

RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet

Certification:

CE

Warranty:

12 months

Net weight:

37KGS





DIMESNIONS SPECIFICATIONS:
304 Stainless Steel Durable Tripod Turnstile Gate for Amusement Park
