|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Framework Material:||304# Stainless Steel||Dimension:||1200L*280W*990H Mm|
|Passing Speed:||30 Persons/min||Passage Width:||550mm|
|Mean Time To Failure:||Min. 5 000 000||Operation Temperature:||-10℃ ~ +70℃|
|Input Port:||Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal||Communications Port:||RS232/ RS485|
pedestrian turnstile gate,
turnstile security gate

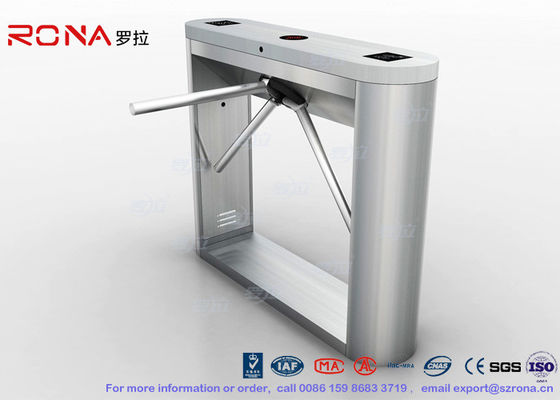

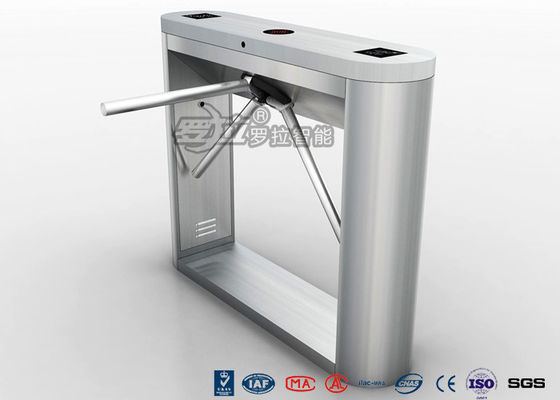

Bi - Directional Tripod Turnstile Gate Security Half Height Turnstile
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.
|TRIPOD TURNSTILE STANDARD FUNCTION SPECIFICATIONS||RNCF638|
|The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.||√|
|Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.||√|
|Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).||√|
|Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).||√|
|Automatic-rotation function: once an open signal is given, the arms will rotate automatically.||×|
|Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.||√|
|Auto-lift-arm function: when the power is on again, the arm can also lift automatically||×|
|Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.||√|
|Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home||√|
|Optional indication of Mulit LED||√|
|Optional indication of inside LED counter or outside LED counter||√|
|With interface of switch of relay, compatible with all the access controller||√|
|Equipped with free control software for man-machine interface & control command SDK.||√|
|Through the management computer to realize remote control and management.||√|
EASY MAINTENANCE: Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.
SEMI AUTO ROTATION:Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.
ANTI TAIL-GATING:Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.
USER FRIENDLY:LED at top cover indicates approved entry direction after flash card. LED at each leg indicate if the lane is available or closed down for servicing. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
EASY INTEGRATION:Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and side leg can be opened to install external devices.
|Framework:||304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)|
|Thickness of ply:||1.3mm (default)|
|Finish:||① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)|
|The maximum tolerance of the pole:||80Kg|
|Working driving force of the pole:||3Kg|
|Read facilities mounting:||may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.|
|Power voltage:||AC220V±10%, 50Hz±10%|
|Work movement:||Germany technology electromagnetic valve|
|Semi-automatic type:||In-built hydraulic shock absorber|
|Main-board voltage:||12V DC|
|Passing speed in normally open mode:||30~40 persons/min|
|Passing speed in normally closed mode:||25~30 persons/min|
|Time of opening / closing:||0.2 seconds|
|The time required to running state after power on:||5 seconds|
|Operation Temperature:||-10℃ ~ 70℃|
|Relative humidity:||≤95% not condensed|
|Input port:||relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal|
|Communications port:||RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet|
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
