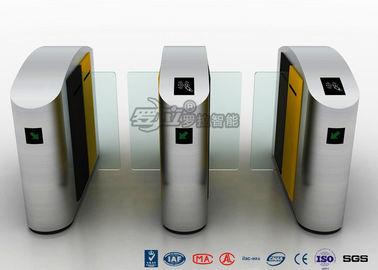

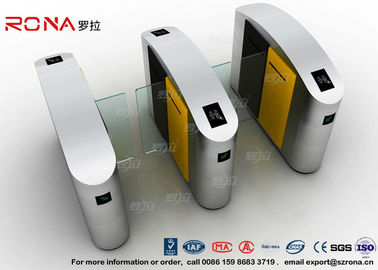

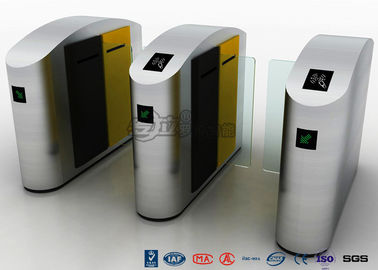

304 Stainless Steel Turnstile Barrier Gate Flap Barrier Gate Sliding Waist Height Turnstiles With DC Brush Motor

304 Stainless Steel Turnstile Barrier Gate Flap Barrier Gate Sliding Waist Height Turnstiles With DC Brush Motor

turnstile access control

waist high turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF7066 / RNCF7066S

Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
Dimension:
1400L*300W*1030H Mm
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
DC Brush Motor
Operation Temperature:
-10℃ ~ +70℃
Relative Humidity:
≤95% Not Condensed
Working Environment:
Indoor/Outdoor (with Rain-tent Cover)
Input Port:
Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

304 Stainless Steel Turnstile Barrier Gate Flap Barrier Gate Sliding Waist Height Turnstiles With DC Brush Motor



PRODUCT CLASSIFICATIONS:

It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.

Single-core mechanism: RNCF7066 Dual-core mechanism: RNCF7066S
The sliding barrier only equipped with single-core in the cabinet, usually be used in single lane or multi-lane applications. The sliding barrier equipped with independent dual-core in the cabinet, usually be used in multi-lane applications.



Information
The main market segments concerned by RNCF7066 / RNCF7066Sflap barrier are:
. Banks, insurance companies
. Governmental and institutional establishments
. Office buildings, registered offices, administrative sites...
. Schools, universities and colleges
. Sensitive sites : military, nuclear, pharmaceutical, computer centers...
. Airports




Features: Security
Aesthetics Secure and reliable detection system
Elegant design Retractable obstacles allow fast closure of the walkway
Rounded forms and glass obstacle Mechanical locking, preventing forced opening
Quality of finish
Bright, modern pictograms


. Protection of users
. Numerous electronic safety cells
. Permanent control of the movement of the obstacle
. Protection against finger entrapment and physical injury
. In case of emergency, the passage is opened by intrinsic mechanical energy

. Reliability
. Long lifecycle and reduced operating costs



DIMESNION SPECIFICATIONS:

304 Stainless Steel Turnstile Barrier Gate Flap Barrier Gate Sliding Waist Height Turnstiles With DC Brush Motor 0

PROJECTS:

304 Stainless Steel Turnstile Barrier Gate Flap Barrier Gate Sliding Waist Height Turnstiles With DC Brush Motor 1



FACTORY:

304 Stainless Steel Turnstile Barrier Gate Flap Barrier Gate Sliding Waist Height Turnstiles With DC Brush Motor 2





EXHIBITION:
Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel
