Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF7088 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, |
Supply Ability: | 2000 units Per Month |
Product Name: | Pedestrian Control Electronic Flap Barrier Gate/ Acrylic Counter Turnstiles | Standar Size: | L1400*W300*H900mm |
---|---|---|---|
Material Of Flap: | Red Solf Flapper | Passage Width: | 550mm |
Mean Time To Failure: | ≧ 5 Million | Communications Port:: | RS485 Distance=1200m |
Materials: | 304 Stainless Steel & Stoving Varnish | Direction: | Single And Bi-directional |
Pass Speed: | 40 Persons/min | Tine To Opean And Close Gate: | 0.6 Seconds |
High Light: | automatic systems turnstiles,waist high turnstile |

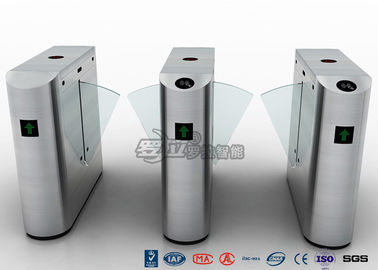

Pedestrian Control Electronic Flap Barrier Gate/ Acrylic Counter Turnstiles
Tenical Parameters
Description | Parameters |
Item / Model | RNCF7088 |
Running life | No more than 5 millions |
Drive voltage | DC24V 20W |
Pass Speed | 40 persons/minute |
Open direction | Unidirectional and bidirectional (optional) |
Opening time | 0.6S/It is adjustable |
Humidity | ≤90% coagulation free |
Thickness of Housing | 2.0mm |
Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Working Environment | indoor/out(with tent over)-10°C~70°C |
Product Description
Flap turnstiles is a hight-tech product which mainly provides intelligent management to passageway.This product is finely processed with
complete function and high level ,suitable for high-level neighborhoods intelligent building, hotel, subway, port and club,ect.
Standard functions & features of Flap Turnstiles Gate
1) On-line or off –line mode(optional) |
2) DC Brushless Motor, Maintenance Free |
3) With direction indication, guiding passenger to entry and exit. |
4) Self automatic locking to prevent forcedly passing without the card |
5) Light and sound alarm indication function, preventing illegal entry or irregular passing |
6) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation |
7) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card. |
8) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000 |
Extend Functions
The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.
1. | access control system |
2. | bar-code scanner |
3. | Token /ID/IC card reader |
4. | time & attendance system |
5. | coin collector |
6. | card collector |
7. | consumption system |
8. | ESD system and fare collection system |
9. | biometric systems (fingerprint & face recognition) |
Contact Person: Joey Tu
Tel: 0086-88853586 ext 8018
