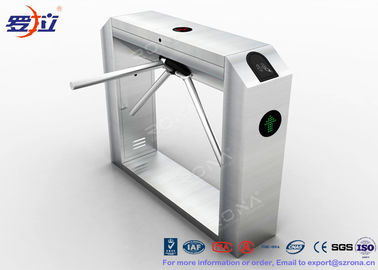

Bar Code Waist Height Turnstiles Stainless Steel 25~30 Persons / Min Passing Speed

Bar Code Waist Height Turnstiles Stainless Steel 25~30 Persons / Min Passing Speed

turnstile security gate

tripod access system

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF 838

Contact Us
Request A Quote
Product Details
Materials:
304# Stainless Steel
Finish:
Brushed Surface/polishing Surface
Place Of Origin:
Shenzhen, China
Driver Motor:
Brush DC Motor
Passing Speed:
25~30 Persons/min
Passage Width:
550mm
Net Weight:
55KG
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Galvanize TCP/IP One-way Access Control System Bar code waist Height Turnstile coin entrance barrier swing gates

Introduce of sliding turnstile gates :

Integrating mechanism, electronics and micro-processor advanced technologies.The wasit height turnstile is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection  to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.
sliding turnstile gates designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out



SPECIFICATIONS of  waist height turnstile
  • Long-life performance, high operation dependability and fast response.
  • The whole system runs smoothly, low noise, no mechanical impact.
  • Self-test function, when power on, system restoration automatic.
  • Single directional or Bi-directional is selectable.
  • LED indicator.
  • Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
  • When power off, tripod turnstile arms will drop down automatically, which is complying with fire safety requirements.
Model RNCF-838
Voltage AC 220V/110V±10%
Frequency 50/60Hz
Current 3A
Control circuit: DC24V
Power consumption 40W
Working temperature -20°C~60°C
Working humidity 0~95%RH
Protection grade IP44
Arm length 500mm
Arm diameter 38mm

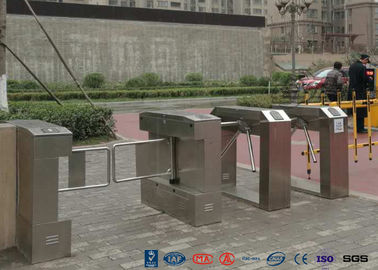

Bar Code Waist Height Turnstiles Stainless Steel 25~30 Persons / Min Passing Speed 0


Functions and Features of the sliding gates :

1. Problem-self-checking function.

2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

7. Flap barrier is with 485 interface for long-distrance control concern.

8. Anti-rush function: if there is no open single, arm will be holding tightly.

9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.

10. Flap barrier is with standard electrical interface for the integration of various readers and writers.

11. Flap barrier can count how many passenger has passed and will show it in the LED display.

12. Direction display to guide passenger which direction is to go.

13. Card-reading with memory or without memory function.

14. Flap barrier can control the population inside in the control of software.

15. Stable running with little noise.

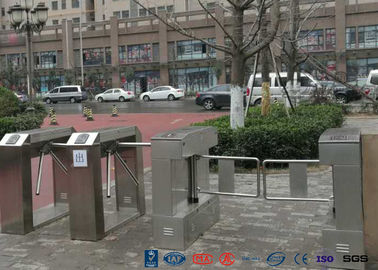

Bar Code Waist Height Turnstiles Stainless Steel 25~30 Persons / Min Passing Speed 1
