Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF F138

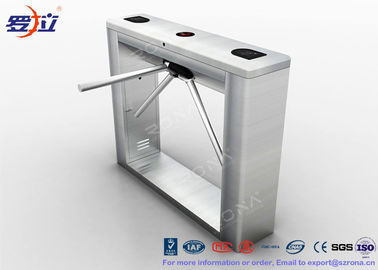

Waist High Railway Access Control Turnstiles Stainless Steel Silver RFID Reader
Introduce of the tripod turnstile
RONA turnstiles are motor driven tripod turnstiles intended for wide range of application in inside and outside environment. High quality and robust construction assures reliable, long term and cost-effective operation. Various design solution allows finding an ideal type of turnstile for interiors. Increasingly these turnstiles are the necessary part of access control system and person movement evidence.
Main Functions and Features of the System of tripod turnstile
1) Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
2) If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
3) Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
4) Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
Technical Parameter of tripod turnstile
| Technical parameters | |||
| Power voltage | AC220±10%,50Hz | Open angle | 60° |
| Drive voltage | DC24V; AC12V+AC18V | Pass speed | ≤ 30 persons/minutes |
| Running life | Continuous Opening and Closing operationMore than 6 million times | ||
| Operation temperature | -30℃~+70℃ | Structure | Frame or 304 Stainless steel cover |
| Relative humidity | ≤95%,None-condensation | Open direction | Unidirectional and bidirectional (optional) |
| Input signal | 12v DC level or DC12v pulse>100ms | Environment | Outdoor and indoor |
| Working Current | >2000mA |
Protection Grade |
IP54 |
| Length of the bar | 500mm |
Width of passage |
550mm |
Features of tripod turnstile
1. Malfunction self-check and alarm reminder, ease of maitenance and use
2. Running method can be set through small buttons on the control panel
3. Arm reacts drop automatically in emergency
4. Arm go up by hand when power on
5. Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
6. Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7. Unique positioning, self reset, one arm always in the horizontal level
8. LED lamp indicator
9. Arm push by hand when people passing
10. one direction or bi-direction flow control
11. work directly with PC for remote control and management
12. LED counter Display (optional function)
13. Bi-direction Anti reverse rotation
