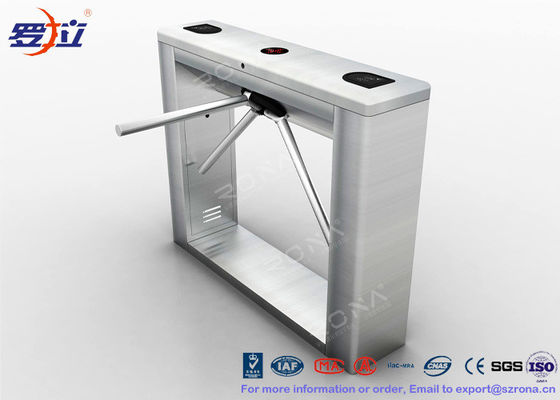

ESD System Tripod Pedestrian Turnstile Gate For One - Direction Flow Control

ESD System Tripod Pedestrian Turnstile Gate For One - Direction Flow Control​

Introduce of tripod turnstile

1) Easy operation and maintenance with functions of breakdown self check and alarm.
2) Equipped with standard card read window, external switch button and remote control are available, realizing one or bi-direction control.
3) With automatic reset function:Turnstile pole turns 120 degree then system automatic reset (pole locks).When there is no valid access within the preset time, the system will automatically cancel the access permission and automatically close(lock), delay time can be 3 s, 5 s, 10 s, 60 s.
4) Impingement resistant function: Without receiving the start signal, turnstile pole locks automatically.
5) Anti-trailing function:Turnstile pole rotates 120 degree and then automatically locks, The positive action lock also helps in preventing two passage at one time.
6) The pole will drop down automatically to evacuate people in the event of an emergency, such as fire, power failure.
7) Can be connected with various card-reading devices,and receive the switch signal of the relay.
8) With optical working principle, no delay to the input control signals, absolutely ensure one card for one person at a time.
9) By external button, left or right open function can be realized.
10) External button can realize drop arm function even when power is on.
11) Realize remote control and management directly through the computer (customized)
12) Control panel can be connected with external counter to record the number of present, superposition to add, reverse to reduction.(customized)

PRODUCT INFORMATION

1, Malfunction self-check and alarm reminder, ease of maitenance and use
2, Running method can be set through small buttons on the control panel
3, How arm reacts in emergency
4, How arm reacts when power on
5, Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
6, Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7, Unique positioning, self reset, one arm always in the horizontal level
8, LED lamp indicator
9, When open signal is given, arm rotate to a certain degree
10, How arm reacts when people passing
11, One direction or bi-direction flow control
12, Work directly with PC for remote control and management
13, LED counter Display
14, Bi-direction Anti reverse rotatio

Technical Parameter

Main Functions and Features of tripod turnstile
