| Brand Name: | RONA |
| Model Number: | RNCF P138 |
| MOQ: | 1 unit |
| Price: | negotiation |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |

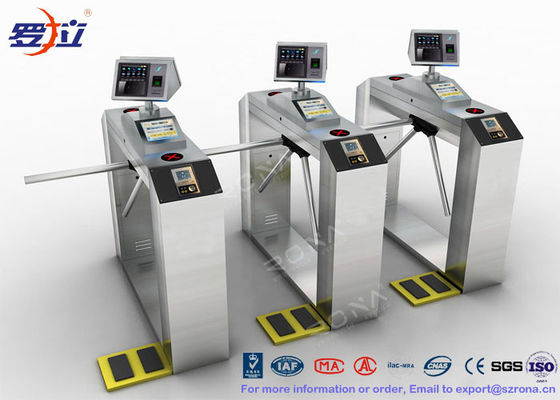

TCP / IP Door Security Access Control Turnstiles RFID Automatic Tripod Turnstile Gate
Introduce of tripod turnstile
RNCF- P138 tripod turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC,ID, barcode, fingerprint reader and soon to prvoide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.
PRODUCT INFORMATION
(1) Running stable without noise and mechanical impact.
(2)The passers number can be set by management dept.
(3) Several working molds optional.
(4) Bi-direction, or uni-direction. one forbidden, or one direction charged/ one for free pass, and all the working molds set in the main control board.
(5) Arm's up&down can be remote in long-distance when in fire happened.
(6) Indicator display guide passer in & out.
(7) The standard interface compatible with various readers and writer equipments.
(8) Computer intelligent control turnstiles.
(9) LED counter display passers total number .Manager can set numbers to 0.
(10) Card-reading memory cab be set by users.
(11) Self-check and alarm.
Parameter of tripod turnstile
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating Temperature | -10°C-70°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Access Width | ≤600mm |
| 5 | Passing Speed | 40persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | stainless steel 304,thickness is no less than 1.5mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
How does the turnstile work ?
| 1. Single/double walkway--controlled in one direction or both | |||||||||
| 2. A valid lock action can allow one passage at one time. | |||||||||
| 3. Normally open--the machine will unlock when a valid signal is received. | |||||||||
| 4. It will lock automatically if passage through turnstile is not completed within pre-set time,the set time can be adjusted via parameter change. | |||||||||
| 5. Lightning protection and leakage protection . | |||||||||
| 6. Protection functions: anti-pinch, anticollision, antistall, over voltage and over current and powersurge . | |||||||||
| 7. Control panel with count and LED digital function | |||||||||
| 8. The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact . | |||||||||
| 9. Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance . | |||||||||
| 10. Standard external electric interface with photoelectric isolation enchance incorporate all kinds of control equipments thus extremely convenient for system integration . | |||||||||
| 11. Remote control and setup . | |||||||||
| 12. Extended functions: counting, audible and visual alarm, fire alarm and linkage, Photoelectric Beam Detector |
|
|
