Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF1066 / RNCF1066S |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, |
Supply Ability: | 2000 units Per Month |
Framework Material: | 304# Stainless Steel | Dimension: | 1210L*310W*1000H Mm |
---|---|---|---|
Material Of Sliding: | Tempered Glass | Power Voltage: | AC220V±10%, 50Hz±10% |
Driver Motor: | DC Brush Motor | Relative Humidity: | ≤95% Not Condensed |
Input Port: | Relay Dry Contact Signal; +12V Level Signal And Pulse Width >100ms, DC12V Pulse Signal | Communications Port: | RS232/ RS485 |
High Light: | controlled access turnstiles,access control barriers |
PRODUCT CLASSIFICATIONS:
It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.
-> Single-core mechanism: RNCF1066

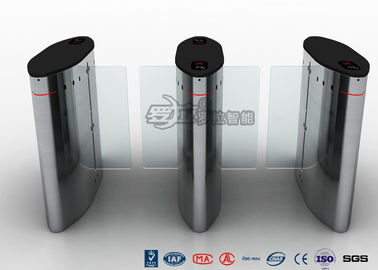

The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.
-> Dual-core mechanism: RNCF1066S

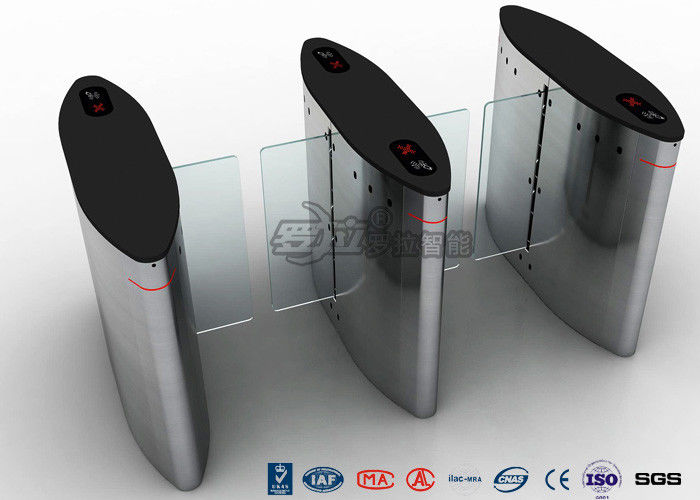

The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.
TECHNICAL SPECIFICATIONS:
Product Name |
Sliding Gate Turnstile |
|
Model |
RNCF1066 |
RNCF1066S |
Classifications |
Single-core mechanism |
Dual-core mechanism |
Framework |
304# Stainless Steel (default) |
|
Thickness of ply |
1.7mm |
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
Size (L*W*H) |
1210mm*310mm*1000mm (default) |
|
Material of flap |
Tempered glass |
|
Stretching-out flap length |
230~235mm |
|
Height of Sliding Gate |
max of 1500mm (optional) |
|
Machine center |
Germany technological motor |
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
Driver motor |
DC brush motor |
|
Main-board voltage |
12V DC |
|
In-built Infrared |
6 pairs/lane |
|
Passing speed |
30 persons/min |
|
Passage Width |
550mm |
|
Opening / closing time |
0.6 seconds |
|
The time required to running state after power on |
3 seconds |
|
Automatic reset time after the failure |
10 seconds |
|
Mean time to failure |
min. 5 000 000 |
|
Operation temperature |
-10℃ ~ +70℃ |
|
Relative humidity |
less than 95% not condensed |
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
Input port |
relay dry contact signal; +12V level signal or DC12V pulse signal |
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. |
|
Warranty |
12 months |
|
Certificate |
CE |
PRODUCT DESCRIPTIONS:

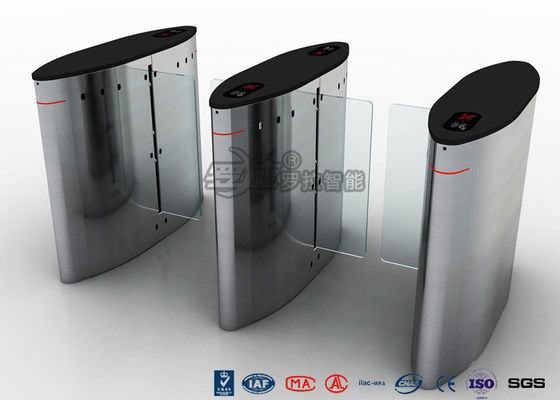

The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.
The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
DIMESNION SPECIFICATIONS:
