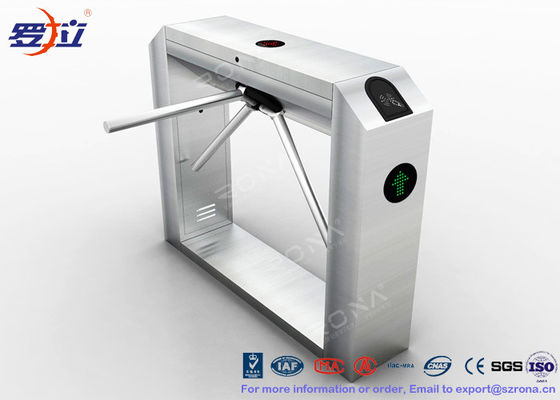

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate

  • Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate
  • Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate
  • Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate
Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF 838
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Material: 304# Stainless Steel Dimension(L*W*H): 1200mm*280mm*990mm
Thickness Of Material:: 1.5mm Work Movement: Germany Technology Electromagnetic Valve
Passage Width: 550mm MTBF: 5 Million
Color:: Silver Operation Temperature: -10°~70°
High Light:

pedestrian turnstile gate

,

tripod access system

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate




PRODUCT CLASSIFICATIONS:



1 Auto replacement function, reposition after person pass by



2 Anti tail function auto-lock once turn 60° .



3 Arms auto drop when power off , insure unblocked when accident



4 Standard electronic interface, remote control through internet which is also could connect varieties of card readers and receive relay signal to work



5 Diverse control mode optional, changeable due to varying, convenient for your management



6 Auto alert error function, comfort for user maintain and operation



7 Manual button or remote control , bidirectional passage



8 Open signal with memory or with out set function



9 Red and green light to show pass or stop, leisure to exit and entrance





Technical parameters of tripod turnstile
Power voltage AC220±10%,50Hz Open angle 60°
Drive voltage DC24V; AC12V+AC18V Pass speed ≤ 30 persons/minutes
Running life Continuous Opening and Closing operation More than 5 million times
Operation temperature -30℃~+70℃ Structure Frame or 304 Stainless steel cover
Relative humidity ≤95%,None-condensation Open direction Unidirectional and bidirectional (optional)
Input signal 12v DC level or DC12v pulse>100ms Environment Outdoor and indoor
Working Current >2000mA

Protection Grade



IP54
Length of the bar 510mm

Width of passage



550mm

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate 0



3 models of tripod turnstile

1. Automatic vertical tripod turnstile

  • Compatible with kinds of control device like IC, ID, magnetic card, barcode card, anti-static.
  • Optional operating mode: one side or both sides
  • Smooth operation, low noise.
  • Have received emergency function,falling down in outage situation, rising up when electricity.
  • Control panel with counting function, LED digital display function (optional)
  • Control panel with memory function
  • Standard input and output interface, is the best choice for system integrators



2. Semi-automatic vertical tripod turnstile

  • Compatible with kinds of control device like IC, ID, magnetic card, barcode card, anti-static.
  • Optional operating mode: one side or both sides
  • Arms unlock, rapid and reliable
  • Have received emergency function,falling down in outage situation, rising up when electricity.
  • Control panel with counting function, LED digital display function (optional)
  • Control panel with memory function
  • Standard input and output interface, is the best choice for system integrators



3, Mechanical vertical tripod turnstile

  • Unique positioning and reset system: automatic reset, the arms can always stay in a horizontal position.Mechanical transmission products. manual control operation, simple & high reliability
  • No maintaining, suitable for one-way current limiting situation

Electric Stainless Steel Access Control Turnstiles , Revolving Tripod Barrier Gate 1
