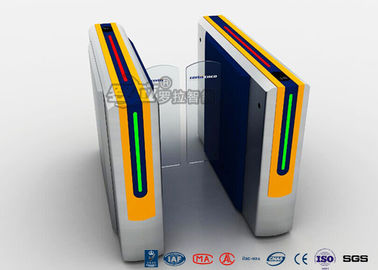

Waist Height Access Control Turnstiles Security Car Park Barrier System

Waist Height Access Control Turnstiles Security Car Park Barrier System

controlled access turnstiles

access control barriers

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF H6088

Contact Us
Request A Quote
Product Details
304# Stainless Steel
Brushed Surface/polishing Surface
Power Voltage:
AC220V±10%, 50Hz±10%
Driver Motor:
Stepping Motor
Passing Speed:
30~40 Persons/min
Passage Width:
Operation Temperature::
-10℃ ~ +70℃
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
Supply Ability
2000 units Per Month
Product Description

Waist Height Access Control Turnstiles Security Car Park Barrier System



Introduce of wasit height turnstile :

Integrating mechanism, electronics and micro-processor advanced technologies.The wasit height turnstile is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection  to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.
sliding turnstile gates designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out


SPECIFICATIONS of  waist height turnstile
1 integration system RFID system , face recognition system , ESD system
2 Frame material 304 stainless steel
3 Frame Size (W)300x(L)1400x(H)2310mm or customized
4 Drive Stepping motor or serve motor
5 Rotation direction bi-directional and unidirectional
6 Controller dapts micro-computer controller can be 7 programmed according to customer needs
7 Interface: standard input and output interfaces can be used for other integration systems
8 Signal source dry contact and high-low level signals
9 Working voltage 220V AC ±10%
10 Voltage: 220V AC ±10%, 24V DC at 3A ±10% and 12VDC at 3A ±10%
11 Indoor/outdoor temperatures -10to 70°C
12 humidity range 95%
13 Switching time 1s
14 Traffic speed 30~35 persons/minute
15 Fault status power-off and giving free exit/entry path
16 Movement failure rate More than 5millions
17 Waterproof Yes
18 Card reader area 2

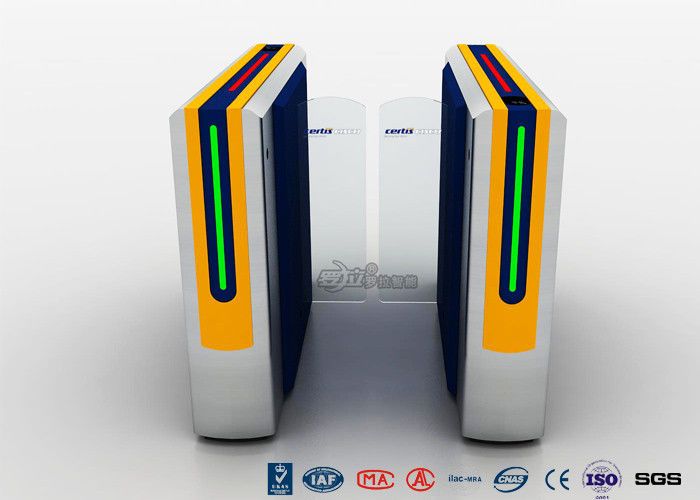

Waist Height Access Control Turnstiles Security Car Park Barrier System 0

Functions and Features of the Waist Height Turnstiles :

1. Self-checking function.
2. Working types:
2.1,bi-direction card reading; direction card reading and another prohibited;
2.3,one direction card reading and another free pass. Working types can be set in the control board.
3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on.
4. Arm open&close time can be set by user in control boards
5. Manager can set pass time in control boards.
6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card.
7. Flap barrier is RS485 interface for long-distance control.
8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately .
9.LED display passengers numbers.
10. Direction display guide passenger go or stop.
11. Control software regulate authorized passengers numbers.
12. Stable running with low- noise.


Waist Height Access Control Turnstiles Security Car Park Barrier System 1


Applications of Waist Height Turnstiles

Sliding gate turnstile is arm at intelligent management of pedestrian access control, this kind of model often use in luxury office building, Luxury residential, subway, star hotel, and some other High-grade places.
