Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF 1088-nonstandard

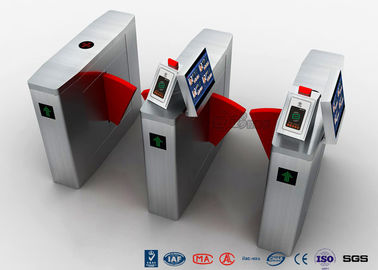

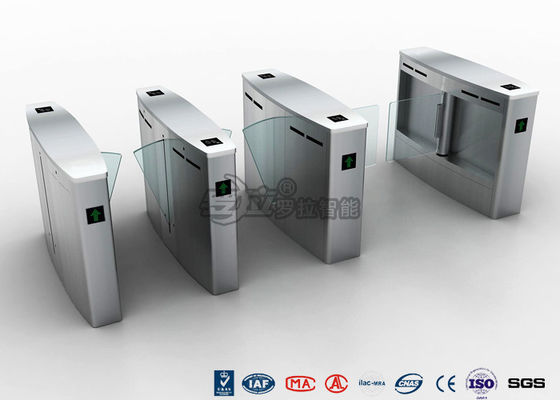

Controlled Access Automatic Systems Turnstiles Full Height For Subway Station
Brief Introduction of Access Control Turnstiles
Swing barrier gates Standard features & functions
1 Problem self-recovery and corrective measure ability, convenient maintain and adjus
2 Motherboard with high clean sound read chips which could broadcast in light of user's requirment
3 Human base model indication function, real time displaying, improve the passing rate and convenient maintain
4 Automatic counting indicating passenger's number
5 Resetting automatically, auto cancel the pass through and closed barrier in case nothing pass the channel in a setting time
6 Anti pinch function with UPS to satisfy firefighter requires, ensure user's safe
7 Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
8 Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.
9 Super combination capacity, adjustable model on site , adjustable speed of barrier slide ,Open signal with memory or with out set function
Specifications of Access Control Turnstiles
| 1 | Power | AC220V ±10V, 50HZ |
| 2 | Housing Size | 1400*300*990mm |
| 3 | Material | 1.5--2mm, 304stainless steel, corosion resistant |
| 4 | Passing Speed | 30~40 Persons/min(IC/ID Card) |
| 5 | Motor | DC Brushless Motor, 0.5NM/24V(Fully Automatic) |
| 6 | Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V pulse, |
| 7 | Communication Connection | RS485 Communication Interface |
| 8 | Protection Grade | IP54 |
| 9 | Railing-off against power off | yes |
| 10 | Relative humidity | ≤95% coagulation free |
| 11 | Applications |
Subway Station,Hoverport,Tourism,Exhibition,Swimming Hall, Residence Area |
Extensible functions
1, LED counting function
2, Box house can heighten , telescopic arm lengthen, can choose materials
3, Infrared reset function & Infrared induction clamp function
4, Sound and light alarm prompt functions
5, Normally open or closed can be adjust to meet the requirements of the different place.
light prompt function: it is convenient to find the turnstile problem by administrative staff
