Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF 738- nonstandard

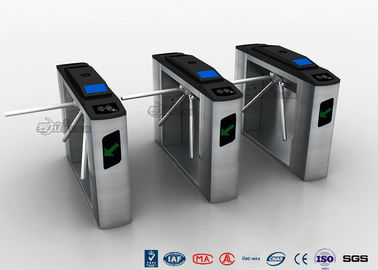

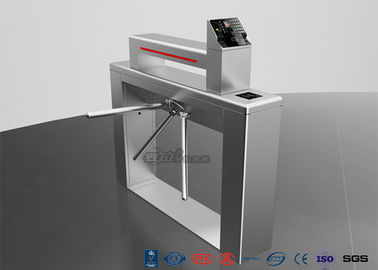

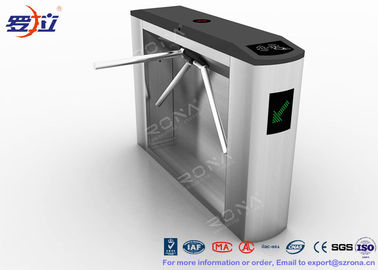

Road Barcode Electric Turnstile Entry Systems Access Control Led Display
PRODUCT CLASSIFICATIONS:
1) the turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out.
2) The machine is well in design, rustproof, durable and can resist external destroy.
3) According to different machine centers, intelligent tripod turnstile can be divided into fully automatic tripod turnstile and semiautomatic tripod turnstile.
4) Their differences are fully automatic product can finish any work by power. The arm will automatically drop when it is powered off.
5)The arm can drop automatically when it is powered off,but when the power is turned off, the arm will be raised by hand.
PRODUCT DESCRIPTIONS:
1. Rainproof housing, #304 stainless steel.
2. CNC stamping and laser drilling, presenting a novel and elegant appearance.
3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators.
4. Direction can be set as single-direction or bi-direction.
5. Direction indicator.
6. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
8. Arms auto drop when power off, complying with fire safety requirements.
9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
10. Dual-bearing device, keeping the gate in balance when there is external force.
TECHNICAL SPECIFICATIONS:
| Framework: | 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
| Thickness of ply: | 1.3mm (default) |
| Finish: | ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional) |
| Dimension(L*W*H): | 1200mm*280mm*990mm (default) |
| Arm material: | Steel |
| Arm length: | 500mm |
| Arm diameter: | 38mm |
| The maximum tolerance of the pole: | 80Kg |
| Working driving force of the pole: | 3Kg |
| Read facilities mounting: | may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
| Power voltage: | AC220V±10%, 50Hz±10% |
| Work movement: | Germany technology electromagnetic valve |
| Semi-automatic type: | In-built hydraulic shock absorber |
| Main-board voltage: | 12V DC |
| Passage Width: | 550mm |
| Passing speed in normally open mode: | 30~40 persons/min |
| Passing speed in normally closed mode: | 25~30 persons/min |
| Time of opening / closing: | 0.2 seconds |
| The time required to running state after power on: | 5 seconds |
| MTBF: | 550mm |
| Operation Temperature: | -10℃ ~ 70℃ |
| Relative humidity: | ≤95% not condensed |
| Operation environment: | Indoor/Outdoor |
| Input port: | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
| Communications port: | RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
| Certification: | CE |
| Warranty: | 12 months |
| Net weight: | 58KGS |
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
