Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF21238F

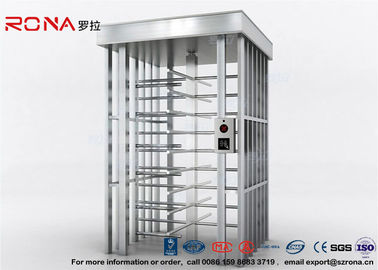

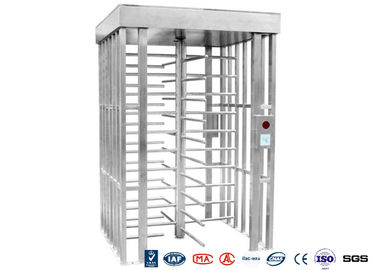

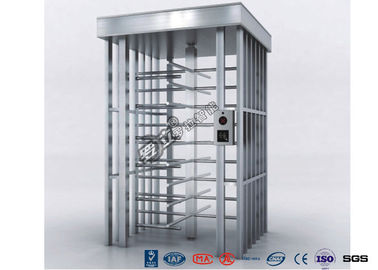

Model: RNCF21238F Single Lane Full Height Turnstile
Functions & Features
1. Compatible with several control devices IC, ID, magcard, bar code
2. Unlocking is quick and reliable.
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. The centre rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Emergency-escape function: The centre rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.
7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface.
TECHNICAL SPECIFICATIONS:
| Model Item |
RNCF21238F |
| Material of Housing | 304 Stainless Steel |
| Thickness of Housing | 2.00mm |
| Dimension of Housing (L×W×H mm) |
L1500*W1350*H2200 mm |
| Length of Pole (out of framework) |
610mm |
| Net Weight | 170kg |
| Max Load-bearing of Pole | 80kg |
| Driving Force of Pole | 3kg |
| Produce Processing | Laser cutting fully controlled by computer |
| Power Supply | 220V±10%, 110V±10% |
| Frequency | 50/60HZ |
| Transmission of Pole | Digital Transmission |
| Light Indicator | Direction indicating |
| Rotating Direction | Single Direction, Double Direction (optional) |
| Time for Opening | 0.2 second |
| Communication Interface | Standard RS485 (distance less than 1200 meters) |
| Input Interface | Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | 10°C~50°C |
| Relative Humidity | ≤90%, no condensation |
OPTIONAL & CUSTOMIZED FUNCTIONS:
> Alternative Materials, Finishes and Custom Design
> Usage LED Counter function
> Audio and visual alarm in the event of an invalid entry or exit and tailgating
> Access Control System Integration
> Camera System Integration
> Thermostat System Integration
OPERATION MODELS:
The turnstile provides bi-directional access control. Each direction may be in one of three states:
> Free passage: all person are authorized to pass under all conditions
> Controlled access: each person must use a card reader before being authorized to pass
> Lane closed: no persons are authorized to pass, and security cards are ignored
DIMESNION SPECIFICATIONS:
PROJECTS:
EXHIBITION:
