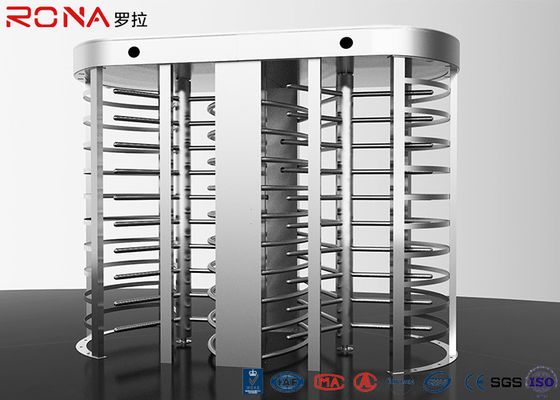

Electronic Full Height Turnstile Security Entrance 30 Persons / Min Pass Speed

Electronic Full Height Turnstile Security Entrance 30 Persons / Min Pass Speed

high security turnstile

stainless steel turnstiles

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:

RNCF 21238Fu

Contact Us
Request A Quote
Product Details
Product Name:
Security Full Height Entrance Electronic Turnstile
Pass Speed:
30 Persons/min
Material Of Swing:
304 Stainless Steel
Input Interface:
+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
Driving Motor:
DC 24 V Brush Motor
Arm Directiona:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Export Wooden Packing
Delivery Time
7-15 work days
Payment Terms
, L/C, T/T
Supply Ability
2000 units Per Month
Product Description


Security Full Height Entrance Electronic Turnstile



Technical parameters


Description Parameters
Item Modle RNCF 21238FU
Housing Material 304 Stainless steel
Standar Size L1500*W1500*H2200(mm)
Working voltage AC220V+-10%/50Hz 100w
Arm driving force 1KG
Opening time 0.2S/adjustable
Humidity ≤90% coagulation free
Service Life >5million
Swing arm length 600mm
Working Environment -10°C~+70°C



Product Decribetion


With the strength of a heavy-duty steel frame, full height turnstile gate provides floor-to-ceiling security. A Full Height stainless steel turnstile can be used for one-way or bi-directional passage and are usually integrated as part of a security access control system. Depending on traffic flow and entry/exit patterns, when more than one lane is required. The full height turnstile installation manual is also easy.

Adaptive Place

Office: Business Building, Government Office, Etc.
Science And Education Unit: Colleges And Universities, Research Institutes, Libraries, Etc.
Business Services: Supermarkets, Shopping Malls, Hotels, Clubs, Banks, Etc.
Leisure And Entertainment Venues: Parks, Scenic Spots, Amusement Parks, Etc.
Transport Site: Bus Station, Railway Station, Subway Station, Airport And So On.


Standard functions & features of Full Hieght Turnstile


1. Full height design with highest accessing safety
2. Easy operation and almost free maintenance
3. Longer lifespan of up to 5 millions times
4. Uni-directional and bi-directional access control can be arbitrary set
5. Fault self-checking and warning, convenient for users to use and maintain

Auto free pass when power is off, auto check and reset when power is on

7. Adopt ARM control technology which has stronger function and better expandability
8. Buffering and anti-collision, anti reverse passing



Extended functions


1. Size customization
2. Voice Prompt Function
3. LED counting function
45. Program customization (for example : Normally open or closed can be adjust to meet the requirements of the different place. )
