|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||carton and wooden packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Framework Material:||304# Stainless Steel||Dimension(L*W*H):||1200mm*280mm*990mm|
|Work Movement:||Germany Technology Electromagnetic Valve||Passage Width:||550mm|
|MTBF:||5 Million||Operation Temperature:||-10℃ ~ 70℃|
|Input Port::||Relay Dry Contact Signal||Communication Port:||RS232 / RS485|
pedestrian turnstile gate,
turnstile security gate

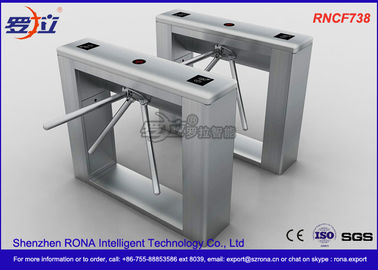

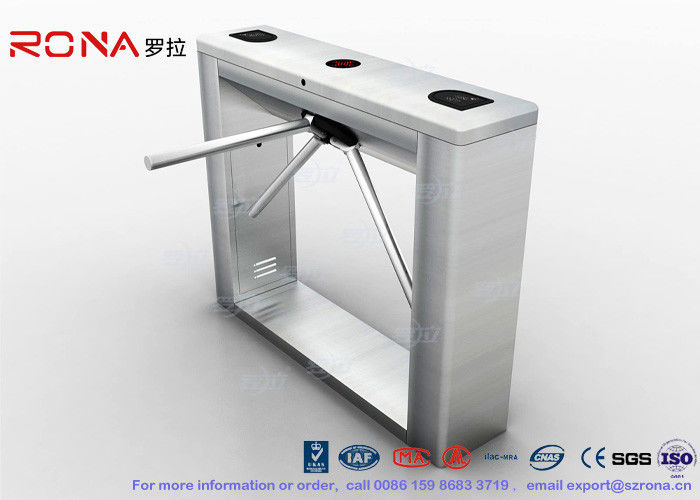

Biometric Recognition Tripod Turnstile With Remote Button Control CE Approval
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
|Framework:||304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)|
|Thickness of ply:||1.3mm (default)|
|Finish:||① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)|
|The maximum tolerance of the pole:||80Kg|
|Working driving force of the pole:||3Kg|
|Read facilities mounting:||may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.|
|Power voltage:||AC220V±10%, 50Hz±10%|
|Work movement:||Germany technology electromagnetic valve|
|Semi-automatic type:||In-built hydraulic shock absorber|
|Main-board voltage:||12V DC|
|Passing speed in normally open mode:||30~40 persons/min|
|Passing speed in normally closed mode:||25~30 persons/min|
|Time of opening / closing:||0.2 seconds|
|The time required to running state after power on:||5 seconds|
|Operation Temperature:||-10℃ ~ 70℃|
|Relative humidity:||≤95% not condensed|
|Input port:||relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal|
|Communications port:||RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet|
STANDARD FEATURES & FUNCTIONS:
1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
3. Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).
4. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
5. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.
6. Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
7. Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home
8. Optional indication of Mulit LED
9. Optional indication of inside LED counter or outside LED counter
10. With interface of switch of relay, compatible with all the access controller
11. Equipped with free control software for man-machine interface & control command SDK.
12. Through the management computer to realize remote control and management.
