|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||wooden cases packing|
|Delivery Time:||7-15 working days|
|Supply Ability:||2000 units Per Month|
|Material::||304 Stainless Steel||Operation Voltage::||AC220V±10% 50Hz±10%|
|Size::||L1500*W1350*H2200 Mm||Communications Interface::||RS485, TCP/IP|
|Transit Speed::||30 ~35 Persons/minute||MTBF::||5 Million|
high security turnstile,
stainless steel turnstiles

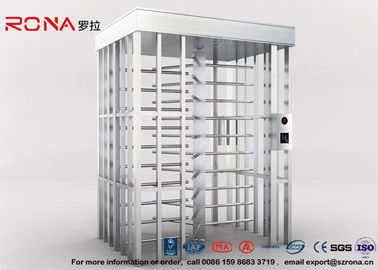

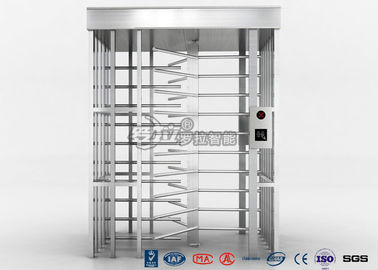

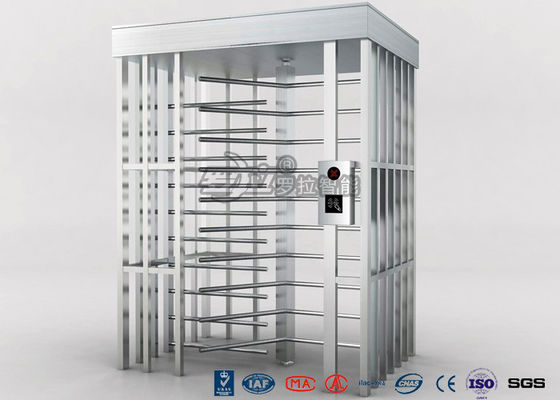

Model: RNCF20238F Single Lane Full Height Turnstile
> RONA full height turnstiles offer secure, efficient pedestrian traffic. All turnstiles are designed and manufactured to the highest specification, using top quality components and materials to ensure ongoing robust, reliable operation.
> The RNCF20238F with 3-arms, 120 degree spacing; Single passageway; effectively prevent crawing and climbing; with impact resistance.
> The RNCF20238F consists of rotor assembly, barrier section, mechanism housing and ceiling plate.
> The rotor assembly consists of three rotors, each containing 10 arms spaced equally 510mm apart. Each rotor post is set at a apposition 120 degrees apart from each other. Each arm is attached to the rotor posts with a solid spigot. Rotors are then bolted to the upper and lower bearing assemblies, thereby providing a full mechanical construction. The barrier consists of a barrier post and 10 arms equally spaced at an offset to the rotor assembly. Arms are attached mechanically over solid spigots.
> With semi-automatic structure, after turnstiles receiving a legal signal, people need to manually push the arms to finish one passing action. The turnstile works stably, safely and reliable.
> The full height turnstile system is provided with a standard electric interface and is easily integrated into the 3rd party equipment with read/write facilities, such as Biometric reader, consumption system, ESD system and access control system etc.
> As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.
|Framework:||304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)|
|Thickness of ply:||1.7mm|
|Finish:||Brushed surface / Polished surface / Anti-Fingerprints surface|
|Shell’ size:||L1500mm*W1350mm*H2200mm (Standard)|
|The inductive card reader dimension:||equipped with the standard mounting brackets, or tailor.|
|Card Reader mounting:||Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.|
|Operation voltage:||AC220V±10% 50Hz±10%|
|Time of opening / closing:||0.2s|
|Time to work after power on:||3s|
|Reset time after breaking down:||10s|
|Transit speed:||30 persons/minute|
|Communications Interface:||RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)|
|Input interface:||relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA|
|Relative humidity:||≤90% Non-condensing|
|Working Environment:||-10℃ ~ 70℃, Indoor / Outdoor|
We are one of the key turnstiles manufacturer in Shenzhen,China.Our company supply for channel management equipments and intelligent security system solution.
We have 13 years experience deal with inquiries from customers.We are experienced in selling goods to Europe and America,Southeast Asia and enjoy a good reputation among clients.As a manufacturer,we can provide a wide range of products:include tripod turnstile,flap barrier,swing barrier,drop arm barrier,full height turnstile.
Moreover,Besides standard products,we also provide an extensive range of customization services in order to cater for your special orders. We are seeking sincere cooperation with all interested companies.
1.All items have 12 month quality guarantee.
2.OEM/ODM available:Custom design shape,color and logo.
3.Special discount of our distributors or agents in their area.
4.Packing in standard export carton,suggest you pack it by wooden case to protect the products.
5.Fast delivery:sample order in stock,5~7 days for bulk production.
6.Payment:we can accept T/T,
Q1:What is the lead time of order?
A1:for or standard item:
10~50 sets:5 working days
50~100 sets:7~10 working days
200~500 sets:10~15 working days
For customized item:3~7 days longer.
Q2:What's the MOQ?
A2:The MOQ of our tripod turnstile is 1 pcs /pair
Q3.Are your products customized?
A3:OEM is available.We can supply the new products according to your requirements or drawings.
Q4:How can I make an order?
A4:Send us the inquiry or chat with us if you have any questions before order,we will reply you ASAP.We will issue the PI according to your specific requirement.The goods will be send out to you upon getting full payment.
