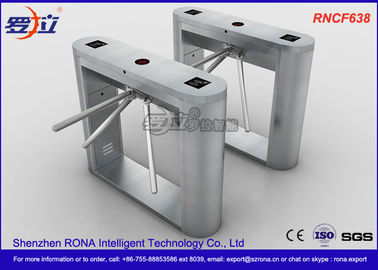

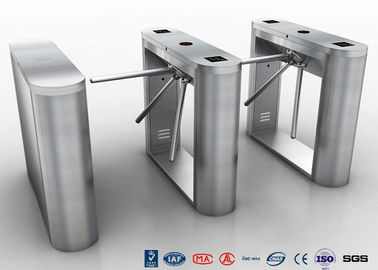

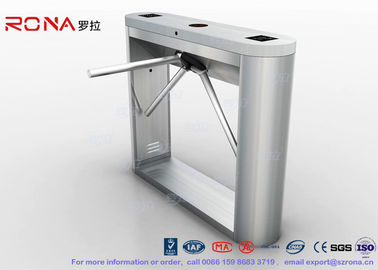

Silver Bi - Directional Turnstile Electromagnetic Valve 60 Degree Anti - Reverse

Silver Bi - Directional Turnstile Electromagnetic Valve 60 Degree Anti - Reverse

pedestrian turnstile gate

turnstile security gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF638

Contact Us
Request A Quote
Product Details
Framework Material:
304# Stainless Steel
Dimension(L*W*H):
1200mm*280mm*990mm
Arm Length:
500mm
Work Movement:
Electromagnetic Valve
Passage Width:
550mm
MTBF:
5 Million
Operation Environment:
Indoor Or Outdoor
Warranty:
12 Months
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Silver Bi - Directional Turnstile Electromagnetic Valve 60 Degree Anti - Reverse

APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.


STANDARD FEATURES & FUNCTIONS:
1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
3. Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).
4. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
5. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.
6. Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
7. Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home
8. Optional indication of Mulit LED
9. Optional indication of inside LED counter or outside LED counter
10. With interface of switch of relay, compatible with all the access controller
11. Equipped with free control software for man-machine interface & control command SDK.
12. Through the management computer to realize remote control and management.

TECHNICAL SPECIFICATIONS:

Framework: 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
Thickness of ply: 1.3mm (default)
Finish: ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)
Dimension(L*W*H): 1200mm*280mm*990mm (default)
Arm material: Steel
Arm length: 500mm
Arm diameter: 38mm
The maximum tolerance of the pole: 80Kg
Working driving force of the pole: 3Kg
Read facilities mounting: may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.
Power voltage: AC220V±10%, 50Hz±10%
Work movement: Germany technology electromagnetic valve
Semi-automatic type: In-built hydraulic shock absorber
Main-board voltage: 12V DC
Passage Width: 550mm
Passing speed in normally open mode: 30~40 persons/min
Passing speed in normally closed mode: 25~30 persons/min
Time of opening / closing: 0.2 seconds
The time required to running state after power on: 5 seconds
MTBF: 550mm
Operation Temperature: -10℃ ~ 70℃
Relative humidity: ≤95% not condensed
Operation environment: Indoor/Outdoor
Input port: relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port: RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
Certification: CE
Warranty: 12 months
Net weight: 58KGS


DIMESNION SPECIFICATIONS:
Silver Bi - Directional Turnstile Electromagnetic Valve 60 Degree Anti - Reverse 0
PROJECTS:

Silver Bi - Directional Turnstile Electromagnetic Valve 60 Degree Anti - Reverse 1
