Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF338

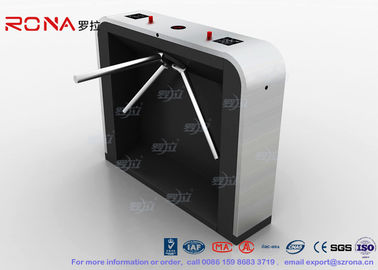

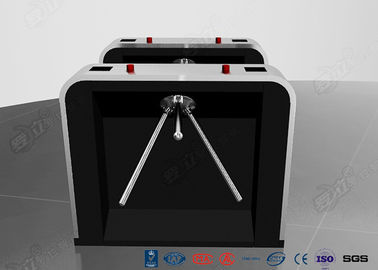

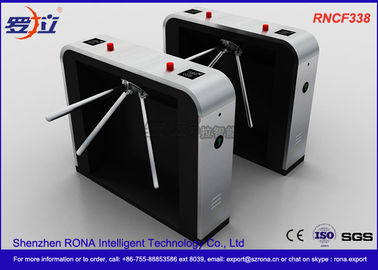

Semi - Automatic Tripod Turnstile Gate , Pedestrian Access Waist High Turnstiles
PRODUCT CLASSIFICATIONS:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.
STANDARD FEATURES & FUNCTIONS:
TRIPOD TURNSTILE STANDARD FUNCTION SPECIFICATIONS |
RNCF338 |
The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc. |
√ |
Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller. |
√ |
Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board). |
√ |
Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board). |
√ |
Automatic-rotation function: once an open signal is given, the arms will rotate automatically. |
× |
Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off. |
√ |
Auto-lift-arm function: when the power is on again, the arm can also lift automatically |
× |
Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
√ |
Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home |
√ |
Optional indication of Mulit LED |
√ |
Optional indication of inside LED counter or outside LED counter |
√ |
With interface of switch of relay, compatible with all the access controller |
√ |
Equipped with free control software for man-machine interface & control command SDK. |
√ |
Through the management computer to realize remote control and management. |
√ |
PRODUCT DESCRIPTIONS:
The tripod turnstile controls pedestrian access between public and secure areas. The tripod turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.
TECHNICAL SPECIFICATIONS:
Framework: |
304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
Thickness of ply: |
1.3mm (default) |
Finish: |
① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional) |
Dimension(L*W*H): |
1200mm*280mm*990mm (default) |
Arm material: |
Steel |
Arm length: |
500mm |
Arm diameter: |
38mm |
The maximum tolerance of the pole: |
80Kg |
Working driving force of the pole: |
3Kg |
Read facilities mounting: |
may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
Power voltage: |
AC220V±10%, 50Hz±10% |
Work movement: |
Germany technology electromagnetic valve |
Semi-automatic type: |
In-built hydraulic shock absorber |
Main-board voltage: |
12V DC |
Passage Width: |
550mm |
Passing speed in normally open mode: |
30~40 persons/min |
Passing speed in normally closed mode: |
25~30 persons/min |
Time of opening / closing: |
0.2 seconds |
The time required to running state after power on: |
5 seconds |
MTBF: |
550mm |
Operation Temperature: |
-10℃ ~ 70℃ |
Relative humidity: |
≤95% not condensed |
Operation environment: |
Indoor/Outdoor |
Input port: |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
Communications port: |
RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
Certification: |
CE |
Warranty: |
12 months |
Net weight: |
65KGS |
DIMESNION SPECIFICATIONS:
PROJECTS:
