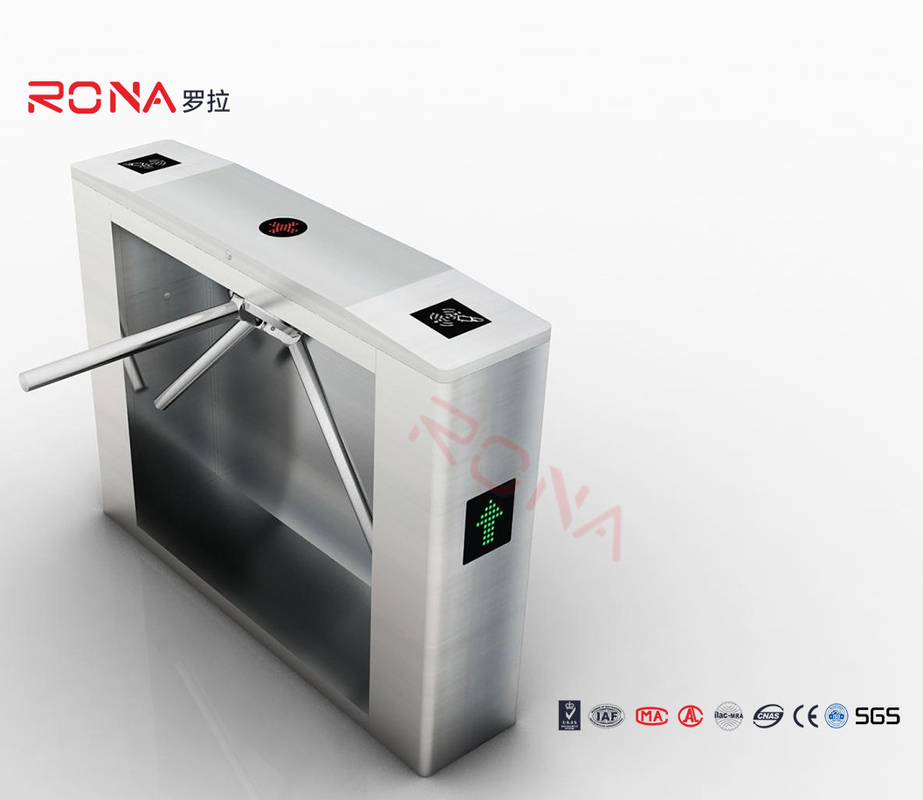

Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust With Tiket Service

Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust With Tiket Service

Waist High Tripod Turnstile Gate

Intelligent Waist High Turnstile

Antirust Waist High Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
304 Stainless Steel
Product Name:
Tripod Turnstile
Passing Speed:
30 Person/min
Power Supply:
Working Environment:
Indoor/Out Door
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust With Tiket Service



Product Introduction


Tripod turnstile gates offer dissuasive automated access control for sites with heavy use. Well-built for increased durability, they efficiently control high throughput. Since they can be installed inside or outside buildings, they provide control of occasional user abuse. This is simple, economical and compact equipment.





  • Compact Design: Slim cabinet;superior-quality finished housing;
  • Upgradable with multiple integrations:Housing offers 2 free spaces (235mmx220mm) for the integration of added customer functionalities, such as proximity readers

  • Robust:Functions in temperatures as low as -40°C;Arm is able to resist load and impact

  • Reliable:Built to withstand intensive operation (single-user throughput up to 20 pers./min;Built to detect fraudulent activity : jump-over and crawl-under detection

  • Comfortable for end-users:550mm free passage width

  • Collapsible arms for easy evacuation in case of power outage / emergency that won’t hinder the users passage
    LED pictograms for intuitive use and high throughput in both directions


  • Parameters

  • Item Full-auto Semi-auto
    Size: L1400*W280*H990 mm
    Bar length : 250(mm)
    Bar Driving model : Digital
    Rolling direction : Bi-direction,unidirectional(optional)
    Lamp indication : Passing way indication
    Mechanism core : Magnetic valve
    Extensive function : Counter ,LED digital display
    Work condition : Indoor/outdoor
    Temperature: -20℃~70℃
    Anti-panic : Drop when power off, raise automatically when power on Drop when power off, raise manually when power on
    Card-reading window : Standard installation holder or customized
    Opening time : 0.2s
    Passing speed : 20-30persons /min
    Working power: 80W 50W
    Working voltage: AC220±10%V 50±10%HZ
    Input interface : Relay, dry contact signal or 12V pulse signal, pulse width>100ms,drive current>10mA
    Communication port : RS485 ,connected with computer, remote control

  • Applications :
    As an access-control application, the  tripod turnstile is a true “tank” that withstands repeated wear and tear in high-volume pedestrian areas in :Schools, universities and colleges,Office buildings, head offices, administrative sites,Industrial and manufacturing facilities,Sports centers, Cultural or entertainment venues,Ports and harbors
