Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF P238

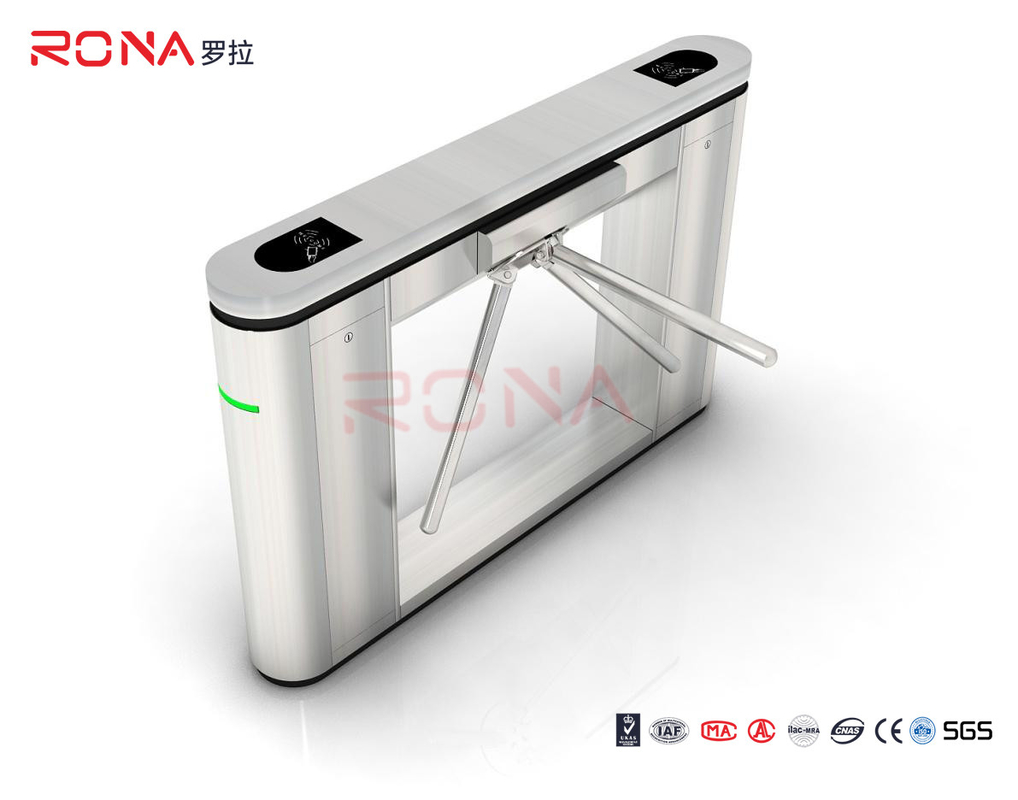

The entire product adopts domestic standard (304) stainless steel plate stamping forming, with beautiful and generous appearance, rust prevention, durability, and resistance to external damage.
The tripod barrier turnstile can be combined with a smart card,fingerprint, bar code,and other identification system equipment to form an intelligent access control system. It is combined with a computer,access control,attendance, charge management,ticket system,and other software to form an intelligent access control management system,which can realize the functions of access control,attendance,consumption,ticket sales, current restriction and so on.
| Motor type: | DC24 solenoid valve |
| Working voltage: |
AC220±10%V 50±10%HZ 60-70W |
| Working environment: | Indoor/outdoor |
| Opening time: | 0.2s |
| Pass speed: | 20-30 person/min |
| Nomal running life: | 5 million times |
Functions
1. Automatic rset function:When the blocking rod is unlocked,it can roate 120 degrees,that is automatic reset. Or when there is no passage within the specified time,the system will automatically cancel the user's permission to pass this time and close automaticall.
2. Anti-collision:When the opening signal is not received,the blocking rod will be locked automatically.
3. Automatic pole dropping function after a power failure to meet the requirements of fire management；It can be connected with a variety of card reading equipment to receive relay switch signals.
4. The optical working principle is adopted,and there is no delay requirement for the input control signal,so as to avoid the phenomenon of several people swiping a card.
5. Remote control and management can be realized directly through the management computer.
6. Mode of passage: With bidirectional passage function, bidirectional anti submarine function, and electromagnetic valve fault detection function.Convenient for users to maintain and save time.
7.Communication interface:RS485
8.The standard card reader or access control integrated machine installation bracket (such as card reader, indicator light installation, etc.) ensures that the system integrator's control gate equipment is simple and convenient during installation.
9.Adopting a high brightness bidirectional indicator module, display mode: dot matrix digital display, using lights to indicate traffic status,
1. Covenient and fast to use
2.The cost is low.
3.Safe: It adopts an internationally recognized wireless transmission channel,which has no radiation damage to the human body and can be used safely;It can effectively realize single-person traffic,that is only one person can pss at a time,with high safety and reliability.
4. Off-line operation of tripod arm turnstile.
5.The tripod barrier turnstile is easy to maintain,economical,and practicl.
6.Tripod turnstile are simple and easy to use.
7.It has strong dust and water resistance and strong adaptability to the evvironment.
Railway,Supermarket,Community tripod turnstile door,Office building,College library
