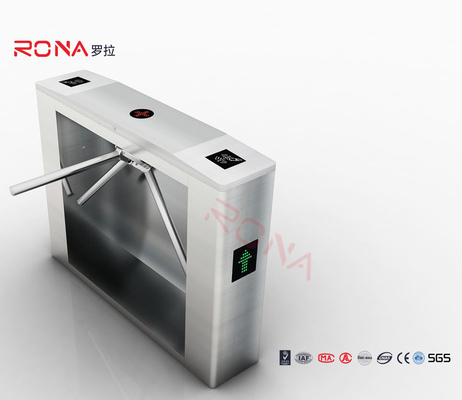

Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width

Secure Entrance Control Tripod Turnstile Mechanism 550mm Passage Width One Year Warranty

     Product Introduction

Tripod turnstile gates offer dissuasive automated access control for sites with heavy use. Well-built for increased durability, they efficiently control high throughput. Since they can be installed inside or outside buildings, they provide control of occasional user abuse. This is simple, economical and compact equipment.

     Functions&Features

• Compact Design: Slim cabinet;superior-quality finished housing；

• Upgradable with multiple integrations:Housing offers 2 free spaces (235mmx220mm) for the integration of added customer functionalities, such as proximity readers

• Robust:Functions in temperatures as low as -40°C；Arm is able to resist load and impact

• Reliable:Built to withstand intensive operation (single-user throughput up to 20 pers./min；Built to detect fraudulent activity : jump-over and crawl-under detection

• Comfortable for end-users:550mm free passage width

• Collapsible arms for easy evacuation in case of power outage / emergency that won’t hinder the users passage
  LED pictograms for intuitive use and high throughput in both directions


• Parameters

• Item	Full-auto	Semi-auto
  Size:	L1400*W280*H990 mm
  Bar length :	510(mm)
  Bar Driving model :	Digital
  Rolling direction :	Bi-direction,unidirectional(optional)
  Lamp indication :	Passing way indication
  Mechanism core :	Magnetic valve
  Extensive function :	Counter ,LED digital display
  Work condition :	Indoor/outdoor
  Temperature:	-20℃～70℃
  Anti-panic :	Drop when power off, raise automatically when power on	Drop when power off, raise manually when power on
  Card-reading window :	Standard installation holder or customized
  Opening time :	0.2s
  Passing speed :	20-30persons /min
  Working power:	80W	50W
  Working voltage:	AC220±10%V 50±10%HZ
  Input interface :	Relay, dry contact signal or 12V pulse signal, pulse width＞100ms,drive current＞10mA
  Communication port :	RS485 ,connected with computer, remote control

•
•

• Applications :
  As an access-control application, the TL 1 tripod turnstile is a true “tank” that withstands repeated wear and tear in high-volume pedestrian areas in :Schools, universities and colleges,Office buildings, head offices, administrative sites,Industrial and manufacturing facilities,Sports centers, Cultural or entertainment venues,Ports and harbors
