Waist Height Access Control Tripod Turnstile Gate Automatic Security Entrance Gates

Waist Height Access Control Tripod Turnstile Gate Automatic Security Entrance Gates

Access Control Tripod Turnstile Gate

Waist Height Tripod Turnstile Gate

Tripod Waist high Turnstile

Place of Origin:


Brand Name:




Model Number:

RNCF 838-X

Contact Us
Request A Quote
Product Details
304 Stainless Steel
Product Name:
Tripod Turnstile
One Year
Transit Speed:
20-30 Persons Per Minute
Working Environment:
Indoor/Out Door
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

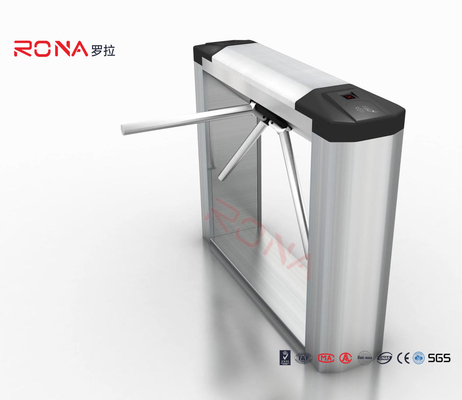

Waist Height Access Control Tripod Turnstile Gate Automatic Security Entrance Gates



Product Introduction


Tripod turnstile gate is the most basic and common access control turnstile with 3 rotating arms that stop or release by rotating 120° each time. Therefore, people also call it 3 arm turnstile. Usually, its height reaches people’s waist, so people also like to call it waist high turnstiles or waist-height turnstiles.


Generally, the shape of the tripod turnstiles is made of a 304 stainless steel plate, which is beautiful and generous, rustproof and durable, and can resist external force damage.


The tripod turnstile can be combined with a smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.





  • It has an automatic reset function. When the blocking rod is unlocked, it can rotate 120 degrees, that is, automatic reset, that is, locking. Or when there is no passage within the specified time, the system will automatically cancel the user’s permission to pass this time and close automatically. The delay is adjustable in 5S, 10s, and 20s.
  • Anti-scour function: when the opening signal is not received, the blocking rod will be locked automatically;
  • Automatic pole dropping function after a power failure to meet the requirements of fire management; It can be connected with a variety of card reading equipment to receive relay switch signals;
  • One-way and two-way traffic function, which can control personnel access in one way or two ways;
  • The optical working principle is adopted, and there is no delay requirement for the input control signal, so as to avoid the phenomenon of several people swiping a card;
  • The external button can realize the left and right normally open functions; It can also realize the function of continuous electric rod dropping;
  • Remote control and management can be realized directly through the management computer;
  • The control board can be externally connected with the counting function to record the number of people present and realize the forward plus and reverse minus functions (customized).
  • The tripod barrier turnstile gate also has the functions of fault self-inspection and alarm prompt, which can facilitate user maintenance and use; It can also be connected with an external switch button or remote control to realize one-way or two-way traffic control.





Item Full-auto Semi-auto
Size: L1200*W280*H1000 mm
Bar length : 510(mm)
Bar Driving model : Digital
Rolling direction : Bi-direction,unidirectional(optional)
Lamp indication : Passing way indication
Mechanism core : Magnetic valve
Extensive function : Counter ,LED digital display
Work condition : Indoor/outdoor
Temperature: -20℃~70℃
Anti-panic : Drop when power off, raise automatically when power on Drop when power off, raise manually when power on
Card-reading window : Standard installation holder or customized
Opening time : 0.2s
Passing speed : 20-30persons /min
Working power: 80W 50W
Working voltage: AC220±10%V 50±10%HZ
Input interface : Relay, dry contact signal or 12V pulse signal, pulse width>100ms,drive current>10mA
Communication port : RS485 ,connected with computer, remote control




Waist Height Access Control Tripod Turnstile Gate Automatic Security Entrance Gates 0


Application(Include but not limited)


Waist Height Access Control Tripod Turnstile Gate Automatic Security Entrance Gates 1
