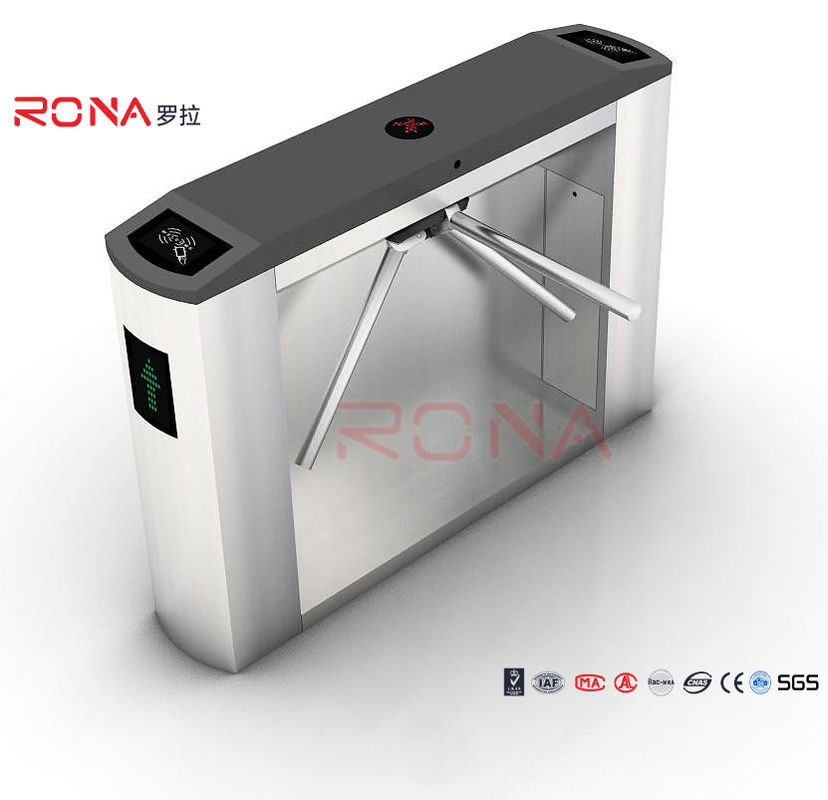

Commercial Fastlane Tripod Turnstile Gate Automatic Security Entrance Gates

Name: Commercial Fastlane Tripod Turnstile Gate Automatic Security Entrance Gates
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCFH 138
Availability: InStock

Brand Name:	RONA
Model Number:	RNCFH 138
MOQ:	1 unit
Price:	negotiation
Delivery Time:	7-15 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO9001

Material:

304 Stainless Steel

Product Name:

Tripod Turnstile

Warranty:

One Year

Size:

1400MM*280MM*990MM

Passing Speed:

25-30 Person/min

Power Supply:

AC220±10%,50/60Hz

Packaging Details:

carton and wooden packing

Supply Ability:

2000 unit per month

Highlight:

Fastlane Tripod Turnstile Gate

Commercial Tripod Turnstile Gate

Automatic Security Entrance Gates

Product Description

Commercial Fastlane Tripod Turnstile Gate Automatic Security Entrance Gates

Brief Introduction

For any location that requires effective crowd management, a tripod turnstile slows traffic down and facilitates closer monitoring of ingress by staff or security guards. While the turnstile can be used for one-way traffic, typical traffic flow is two-way, one direction at a time. Users must pause and take turns before proceeding through the turnstile.

Premium materials
Smooth rotation
Easy installation
Indicator lights (green/red) for easy use and flow
Rotation detection switch
Rigid or collapsible arm set

Functions&Features

With a zero-bit self-inspection function, easy for users to maintain and use.
Semi-automatic 60-degree anti-reverse movement while fully automatic anti-collision movement, clutch lock.
Before received the open signal, the turnstile will lock automatically.
Free passage when the power is off, meet fire requirement. Fully automatic power-on, automatic pole up, semi-automatic power-on, manual lifting pole.
Automatic reset function:After the gate is opened, if the pedestrian does not pass within the specified time, the system will automatically cancel the pass permission of the pedestrian. The reset time is 1S~60S.
One-way or two-way control personnel can enter and exit.
The super-bright direction indicator board prompts traffic conditions.
Can manager and long-range control the turnstile directly by managing the computer.

Commercial Fastlane Tripod Turnstile Gate Automatic Security Entrance Gates 0

Technical Parameters

Item	Full-auto	Semi-auto
Size:	L1400W280H990 mm
Bar length :	510(mm)
Bar Driving model :	Digital
Rolling direction :	Bi-direction,unidirectional(optional)
Lamp indication :	Passing way indication
Mechanism core :	Magnetic valve
Extensive function :	Counter ,LED digital display
Work condition :	Indoor/outdoor
Temperature:	-20℃～70℃
Anti-panic :	Drop when power off, raise automatically when power on	Drop when power off, raise manually when power on
Card-reading window :	Standard installation holder or customized
Opening time :	0.2s
Passing speed :	20-30persons /min
Working power:	80W	50W
Working voltage:	AC220±10%V 50±10%HZ
Input interface :	Relay, dry contact signal or 12V pulse signal, pulse width＞100ms,drive current＞10mA
Communication port :	RS485 ,connected with computer, remote control

Dimension

Commercial Fastlane Tripod Turnstile Gate Automatic Security Entrance Gates 1
